XZL‑KYD10 multi‑spec removable bollard covers D89, D114, D140 three diameter options, unified height 1020mm, wall thickness 3mm, supply both 304SS/316SS stainless steel and carbon steel versions. This lockable demountable movable bollard uses bolt‑down surface‑mount installation. Rich size and material combinations satisfy different project budget and protection‑level demand. 1020mm height delivers prominent visual warning effect. Suitable for large‑scale public bollards for sale project, residential driveway, commercial parking bay and footpath traffic control.


| Product Model | SKU Code | Diameter | Height | Thickness | Material |
| XZL-KYD01 | XZL-KYD01-D70H790T3 | 70 | 790 | 3 | Carbon steel |
| XZL-KYD13 | XZL-KYD13-D100H1100T3 | 100 | 1100 | 3 | Carbon steel |
| XZL-KYD02 | XZL-KYD02BXG-D114H900T3 | 114 | 900 | 3 | Carbon steel |
| XZL-KYD02TG-D114H900T3 | 114 | 900 | 3 | 304SS/316SS | |
| XZL-KYD04 | XZL-KYD04-D89H965T3 | 89 | 965 | 3 | Carbon steel |
| XZL-KYD05 | XZL-KYD05-D89H960T3 | 89 | 960 | 3 | 304SS/316SS |
| XZL-KYD05-D140H1200T3 | 140 | 1200 | 3 | 304SS/316SS | |
| XZL-KYD06 | XZL-KYD06-D89H960T3 | 89 | 960 | 3 | Carbon steel |
| XZL-KYD06-D140H1200T3 | 140 | 1200 | 3 | Carbon steel | |
| XZL-KYD07 | XZL-KYD07-D89H960T3 | 89 | 960 | 3 | Carbon steel |
| XZL-KYD07-D140H1200T3 | 140 | 1200 | 3 | Carbon steel | |
| XZL-KYD08 | XZL-KYD08-D140H900T3 | 140 | 900 | 3 | Carbon steel |
| XZL-KYD08-D168H900T3 | 168 | 900 | 3 | Carbon steel | |
| XZL-KYD09 | XZL-KYD09-D89H1000T3 | 89 | 1000 | 3 | Q235 Steel/304SS/316SS |
| XZL-KYD09-D140H1200T3 | 140 | 1200 | 3 | Q235 Steel/304SS/316SS | |
| XZL-KYD10 | XZL-KYD10BXG-D89H1020T3 | 89 | 1020 | 3 | 304SS/316SS |
| XZL-KYD10BXG-D114H1020T3 | 114 | 1020 | 3 | 304SS/316SS | |
| XZL-KYD10TG-D89H1020T3 | 89 | 1020 | 3 | Carbon steel | |
| XZL-KYD10TG-D140H1020T3 | 140 | 1020 | 3 | Carbon steel | |
| XZL-KYD12 | XZL-KYD12-D89H24inT3 | 89 | 24in | 3 | Carbon steel |
| XZL-KYD12-D114H36inT3 | 114 | 36in | 3 | Carbon steel | |
| XZL-KYD12-D140H42inT3 | 140 | 42in | 3 | Carbon steel | |
| XZL-KYD12-D165H48inT3 | 165 | 48in | 3 | Carbon steel | |
| XZL-KYD11 | XZL-KYD11BXG-D4inH36inT3 | 4in | 36in | 3 | 304SS/316SS |
| XZL-KYD11BXG-D6inH36inT3 | 6in | 36in | 3 | 304SS/316SS | |
| XZL-KYD11TG-D4inH36inT3 | 4in | 36in | 3 | Carbon steel | |
| XZL-KYD11TG-D6inH36inT3 | 6in | 36in | 3 | Carbon steel |

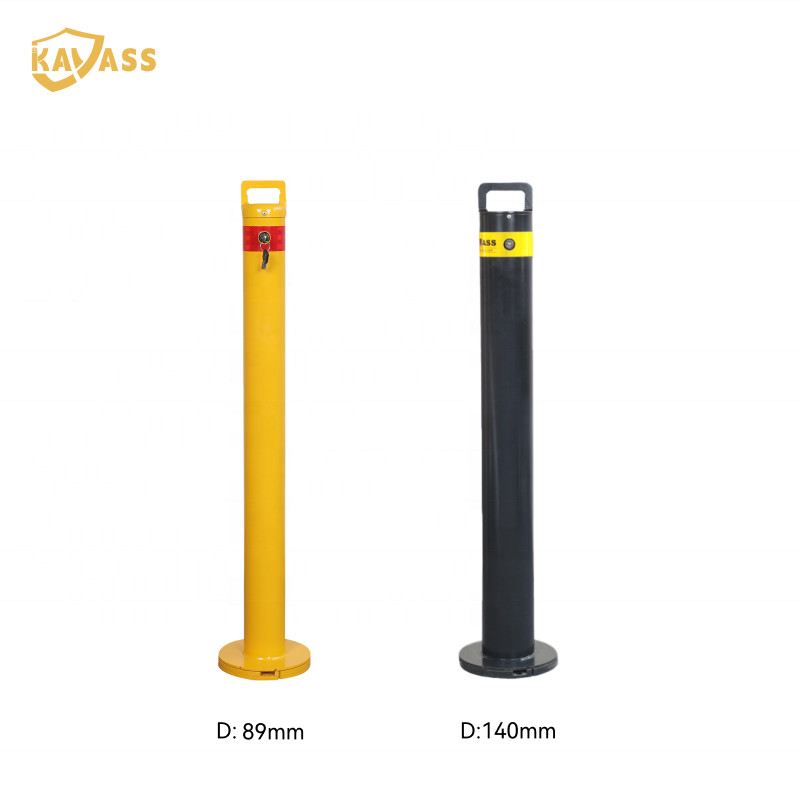

*Abundant Size Combinations: D89 / D114 / D140 diameter, H1020 unified height for diversified project layout.
*Dual‑Material Supply: Carbon‑steel for cost‑effective solution;304 /316 stainless steel bollards for anti‑corrosion requirement.
*Lockable Demountable Removable Mechanism: Flexible access management for driveway security posts.
*1020mm Optimized Working Height: Obvious visual warning for roadside traffic safety.
*3mm Thick‑walled Tube Structure: Sufficient impact‑resistance as protective bollards.
*Bolt‑Down Surface‑mount Base: Convenient for large‑area retrofitting public traffic project.

XZL‑KYD10 multi‑spec demountable movable security post is developed for large‑scale public‑renovation projects requiring diversified‑grade bollard deployment. D89 compact‑diameter variant fits housing‑estate private‑parking‑bay reservation, narrow‑footpath boundary‑separation. D114 medium‑diameter suits community‑main‑road auxiliary‑warning, retail‑street shop‑front access‑restriction. D140 large‑diameter applies for commercial‑complex parking‑lot lane‑division, public‑plaza‑entrance safety‑isolation. Buyers can select carbon‑steel for inland dry‑area to cut‑cost, choose 304SS for humid‑zone, 316SS for partial‑coastal‑sections in one‑big‑project. This removable bollard is widely‑used for city‑street‑upgrading projects, large‑residential‑community batch‑installation, tourist‑town pedestrian‑zone reconstruction. Surface‑bolt‑down mounting fits retrofitting existing finished‑pavement without heavy‑excavation. Operators unlock and remove posts for emergency‑vehicle or delivery‑truck‑pass‑through, reinstall to restore traffic‑barrier‑function. It is widely‑procured by municipal‑engineering‑contractors and large‑property‑management groups.

Chengdu Xinzhonglian Traffic Facilities Co.,Ltd. focusing on the field of traffic facilities, is a large and medium-sized traffic facilities production enterprise integrating research and development, production, processing and sales. It has passed the mass production certificate of traffic engineering products of the Ministry of Communications, and is one of the early enterprises engaged in the research and production of high-grade traffic safety products in China. We have our own factory in Chengdu, covering an area of about 33,340 square meters, with an annual output of 48,000 tons. We have 5 senior technicians, 8 intermediate technicians and 12 junior technicians. The total number of employees in the factory is about 200. We have made great progress. At present, we have advanced production equipment, perfect technological process, strict quality control system and accurate testing means. Our main products include is flexible Bollard, stainless steel fixed Bollard, removable bollard, solar light bollard,manual lifting bollard, semi-automatic rising bollard and hydraulic automatic bollard.






Q1: Can I order mixed‑diameter SKUs in one XZL‑KYD10 bulk order?
A1: Yes, mixed‑diameter and mixed‑material bulk‑order is fully‑supported to realize graded‑protection layout for large‑public‑project.
Q2: What is difference between BXG and TG suffix SKU?
A2: BXG suffix represents carbon‑steel variant; TG suffix represents stainless‑steel bollards variant.
Q3: What ground‑condition requirement for installation?
A3: Solid reinforced‑concrete pavement is mandatory. Installation on asphalt or soft‑soil will cause base‑loosening risk.
Q4: Does standard‑unit contain padlock?
A4: Padlock is not standard‑included. We can supply matched padlock for carbon‑steel and stainless‑steel variants respectively.
Q5: Is 1020mm height suitable for pedestrian footpath deployment?
A5: 1020mm height provides good long‑distance visual warning, meanwhile will not obstruct pedestrian sight‑line for footpath‑application.
Q6: Can reflective film and side‑chain‑holes be custom‑processed?
A6: Yes, reflective warning strips and chain‑connection mounting‑holes can be custom‑made for bulk‑order quantity.
Q7: What maintenance advices for mixed‑material batch‑deployment?
A7: Carbon‑steel units: protect powder‑coating integrity. Stainless‑steel units: regularly wash‑off salt‑residue for seaside‑sections. Check lock‑and‑base‑bolts periodically for all‑units.
Q8: Can you provide complete tender‑support documents for large‑public‑bidding‑project?
A8: Yes, we can offer multi‑size CAD‑drawings, material‑spec‑sheet, packing‑list and installation‑manual for bidding‑submission.
