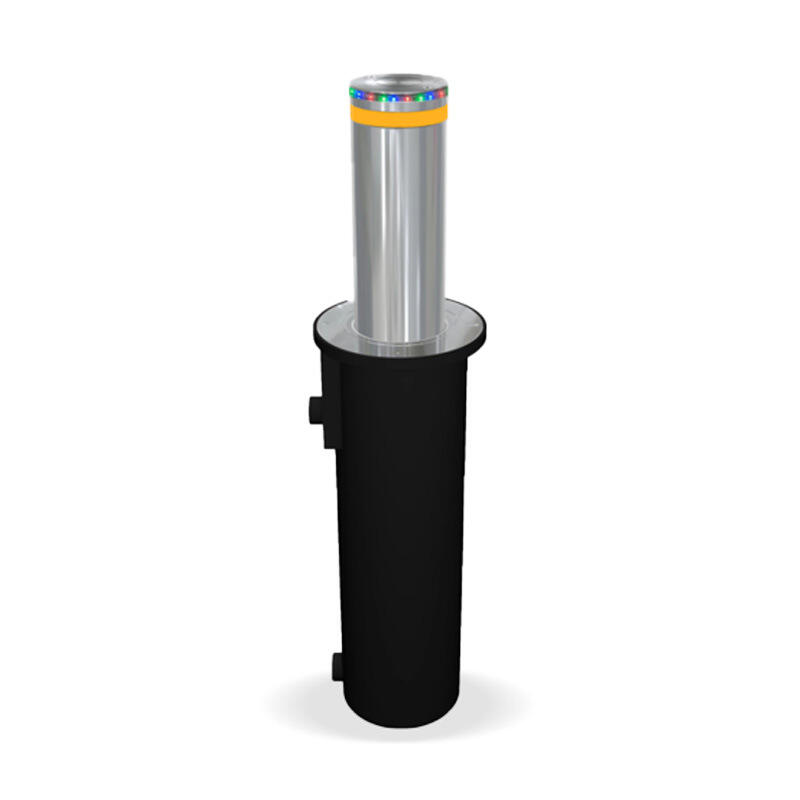

Automatic Lifting Bollard

Our Automatic Hydraulic Bollard is a premium security solution designed for intelligent traffic management and perimeter protection, ideal for commercial, governmental, and public areas. As a top-tier hydraulic rising bollard, it combines robust anti-ram performance, seamless automation, and long-lasting durability, becoming a staple for high-security access control.

Crafted with 304/316 stainless steel (6-12mm wall thickness), this automatic bollard boasts an IP68 protection rating, enabling reliable operation even in extreme environments—from -30℃ to 70℃ and underwater immersion. Powered by an advanced electro-hydraulic system, it achieves fast lifting (3-5 seconds) and lowering (2-4 seconds), with a load-bearing capacity of up to 50 tons and anti-ram rating up to K4 (resists 4-ton vehicle at 40km/h).

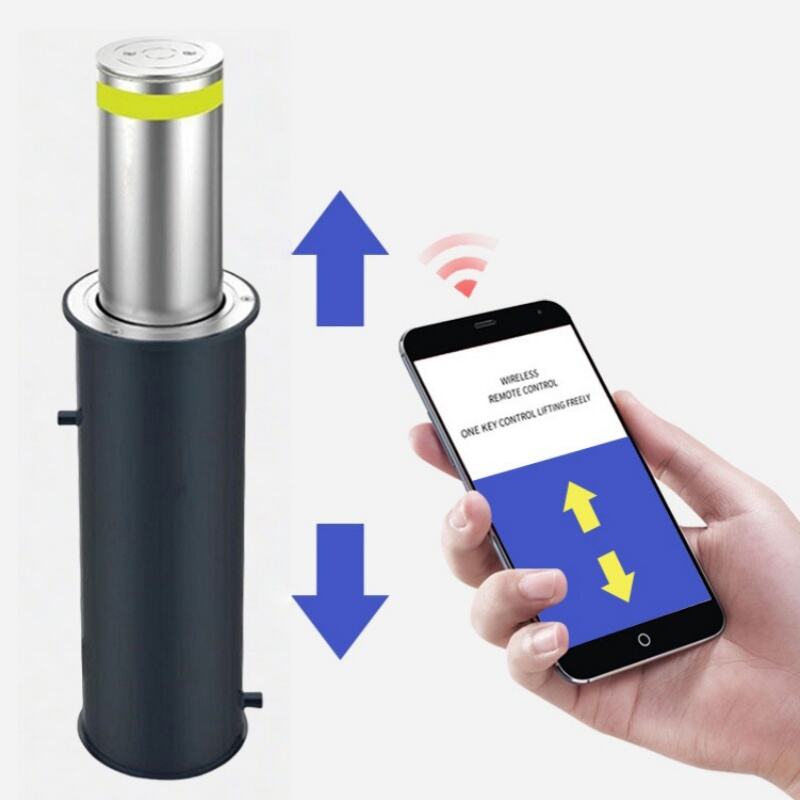

Equipped with multiple smart control options—remote control, license plate recognition, ground loop, Bluetooth, and APP integration—it seamlessly links to your security system for unmanned operation. Features like timed control, traffic statistics, and abnormal alarms enhance operational efficiency. The all-sealed structure ensures low maintenance, with core components (motor, hydraulic pump) designed for 1 million cycles of service life.

Available in integrated (all-in-one) and split types: the integrated hydraulic bollard requires minimal installation space with no underground oil pipes, while the split type supports multi-bollard synchronization via a single pump station. Customizable specifications (diameter 127-273mm, lifting height 300-1100mm) fit diverse scenarios—government buildings, airports, schools, shopping malls, residential communities, and pedestrian streets.

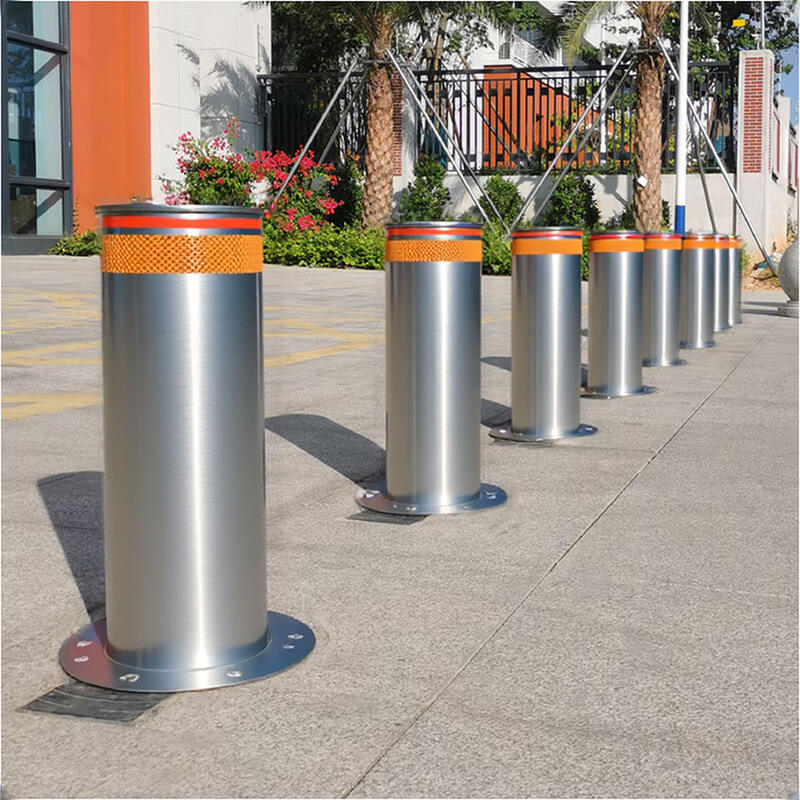

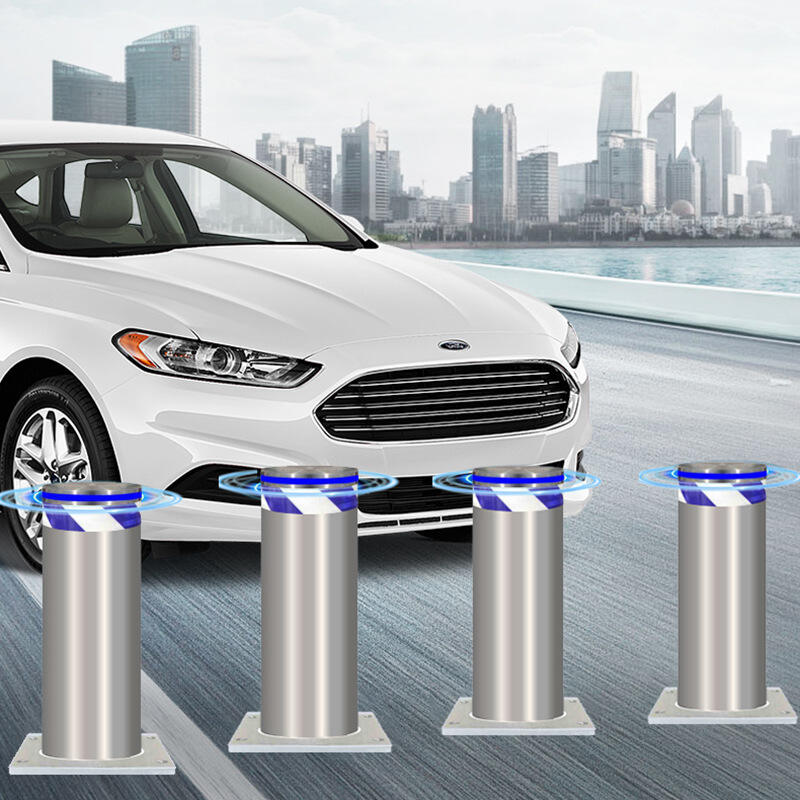

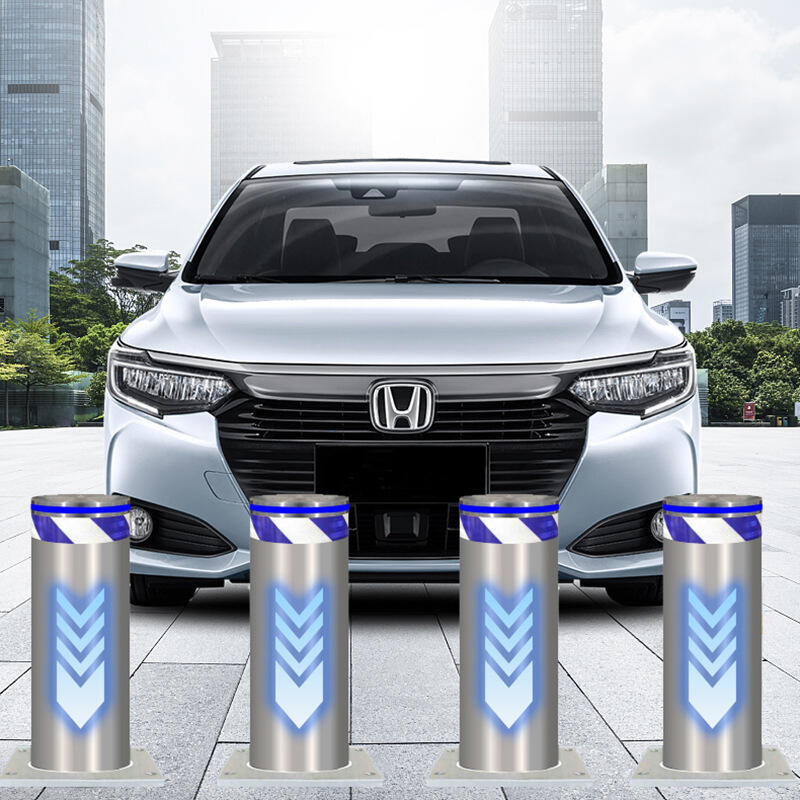

This hydraulic vehicle barrier balances security and convenience: it blocks unauthorized vehicles when raised and lies flush with the ground when lowered, ensuring smooth pedestrian and vehicle flow. Perfect for enhancing perimeter security without compromising accessibility, it’s the first choice for smart city construction and high-security projects. Contact us for tailored solutions!

Introduction

Our industrial-grade automatic hydraulic bollard is a professional access control and perimeter security system, engineered to address the core pain points of vehicle intrusion prevention, traffic management, and security supervision in diverse scenarios. Unlike ordinary barriers, this hydraulic rising bollard integrates advanced electro-hydraulic drive technology, heavy-duty structural design, and intelligent IoT connectivity, making it a preferred choice for high-demand projects such as government facilities, transportation hubs, and critical infrastructure.

Constructed with high-quality 304/316 stainless steel, the bollard body undergoes sandblasting and anti-rust treatment, with a wall thickness of 8-12mm (customizable) to ensure exceptional impact resistance—its anti-ram rating reaches up to K8 (able to withstand 8-ton vehicles traveling at 60km/h) and load-bearing capacity exceeds 60 tons. Equipped with a fully sealed hydraulic system and IP68 protection level, it operates stably in harsh conditions including heavy rain, snow, dust storms, and extreme temperatures (-40℃ to 80℃), without fear of water immersion or component failure.

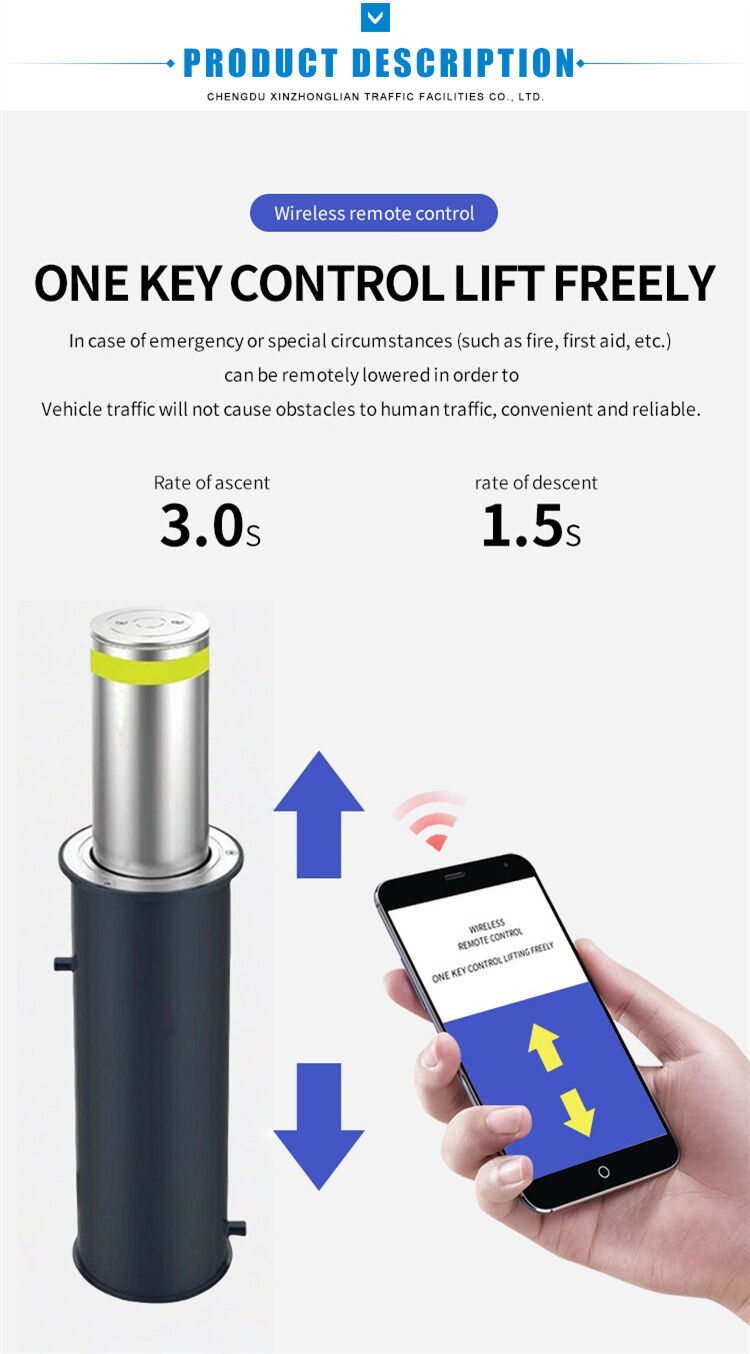

The core drive system adopts a high-precision gear pump and imported hydraulic oil, enabling rapid and smooth lifting (2.5-4 seconds) and lowering (1.5-3 seconds), with a continuous operation capacity of over 80 cycles per hour. To enhance usability, it supports multiple intelligent control modes: license plate recognition (with automatic release for authorized vehicles), ground loop detection (avoids collision with passing cars), remote control (effective within 100 meters), APP remote monitoring, and integration with access control systems and video surveillance. Built-in safety mechanisms include anti-pinch sensors, overpressure protection, and overload alarms, ensuring the safety of pedestrians and equipment.

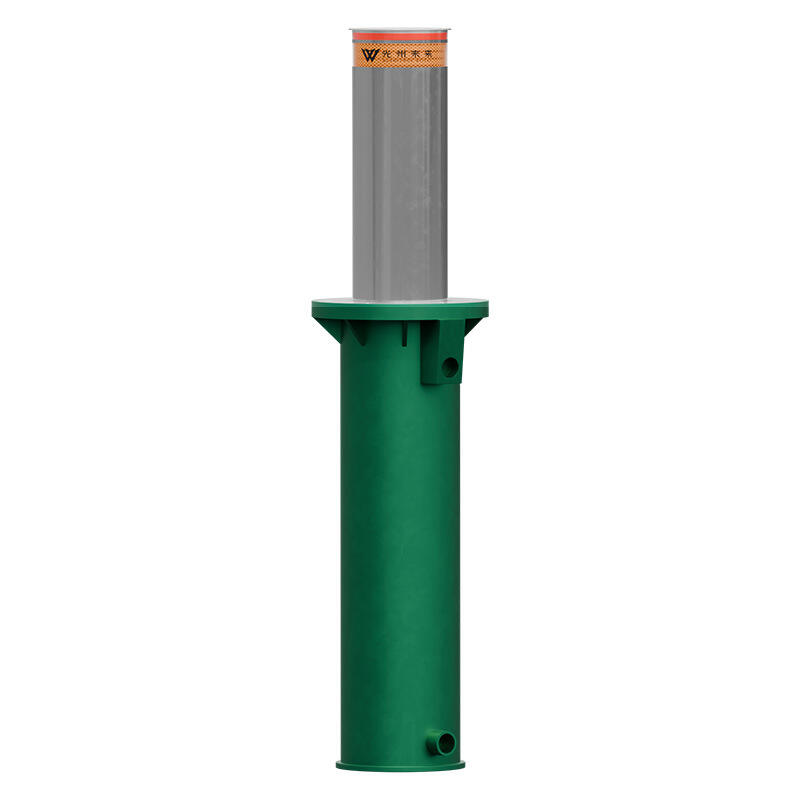

We offer two core models to meet different installation needs: the all-in-one integrated hydraulic bollard integrates the power unit, oil tank, and drive system into the column body, requiring only shallow foundation excavation (reducing construction cost by 25%) and no underground oil pipe laying, suitable for small to medium-sized entrances; the split-type model features a separate control cabinet and power station, which can drive 1-12 bollards synchronously, ideal for large-scale projects like stadiums and commercial plazas. All specifications are fully customizable—column diameter (127-273mm), lifting height (300-1200mm), and surface color (custom powder coating) to match the on-site environment.

This hydraulic vehicle barrier balances strict security and convenient passage: when activated, it rises quickly to block unauthorized vehicles; when not in use, it lies completely flush with the ground, without affecting the normal movement of pedestrians, bicycles, or emergency vehicles. With a service life of core components exceeding 1.2 million cycles and a maintenance cycle of 12 months, it minimizes later operation costs. Whether for school campus safety (preventing vehicle intrusions during peak hours), bank vault protection (high-level anti-robbery), or pedestrian street traffic restriction (protecting public safety), this bollard provides comprehensive and reliable security solutions. Contact our team for personalized project design and technical support.

SPECIFICATIONS

Specification Category

Diameter

Lifting Height

Anti-Ram Rating

Lifting Time

Protection Level

Load-Bearing

Synchronous Control

Working Pressure

Core Life

Base Thickness

Application Scenarios

Adaptation Notes

Small Integrated Type

127-168mm

300-500mm

K1-K2

3-4s

IP67

N/A

Residential community sidewalks, underground garage entrances, small mall backdoors, indoor venues

Compact size, easy installation, suitable for low-traffic and low-security-demand areas; no need for large foundation

Medium Integrated Type

168-219mm

500-800mm

K3-K4

2.5-3.5s

IP68

40-50T

N/A

School entrances, community main gates, convenience store parking lots, urban light-traffic roads

Balances security and convenience; supports frequent use (60+ cycles/hour); adapts to most outdoor environments

Large Integrated Type

219-273mm

800-1200mm

K5-K8

2-3s

IP68

50-60T

N/A

Government buildings, embassy entrances, bank vaults, high-end office building main gates

High anti-collision performance; suitable for high-security areas; withstands extreme temperatures (-40℃ to +80℃)

Medium Split Type

168-219mm

500-800mm

K3-K4

N/A

2-6 bollards

10-14MPa

N/A

Commercial plazas, pedestrian street entrances, stadium auxiliary gates, subway station exits

Supports multi-column synchronous lifting; centralized power station management; easy for later maintenance

Large Split Type

219-273mm

800-1200mm

K6-K12

N/A

4-12 bollards

N/A

1.2M+ cycles

N/A

Airports, railway stations, military bases, large stadium main entrances, critical infrastructure

Adapts to high-intensity work; customizable anti-ram rating; compatible with intelligent security system integration

Low-Profile Special Type

168-219mm

300-400mm

K2-K3

N/A

IP68

N/A

≤10cm

Historic district entrances, old community renovations, indoor exhibition halls, hospital corridors

Shallow foundation design, suitable for areas with limited underground space; does not affect the overall landscape

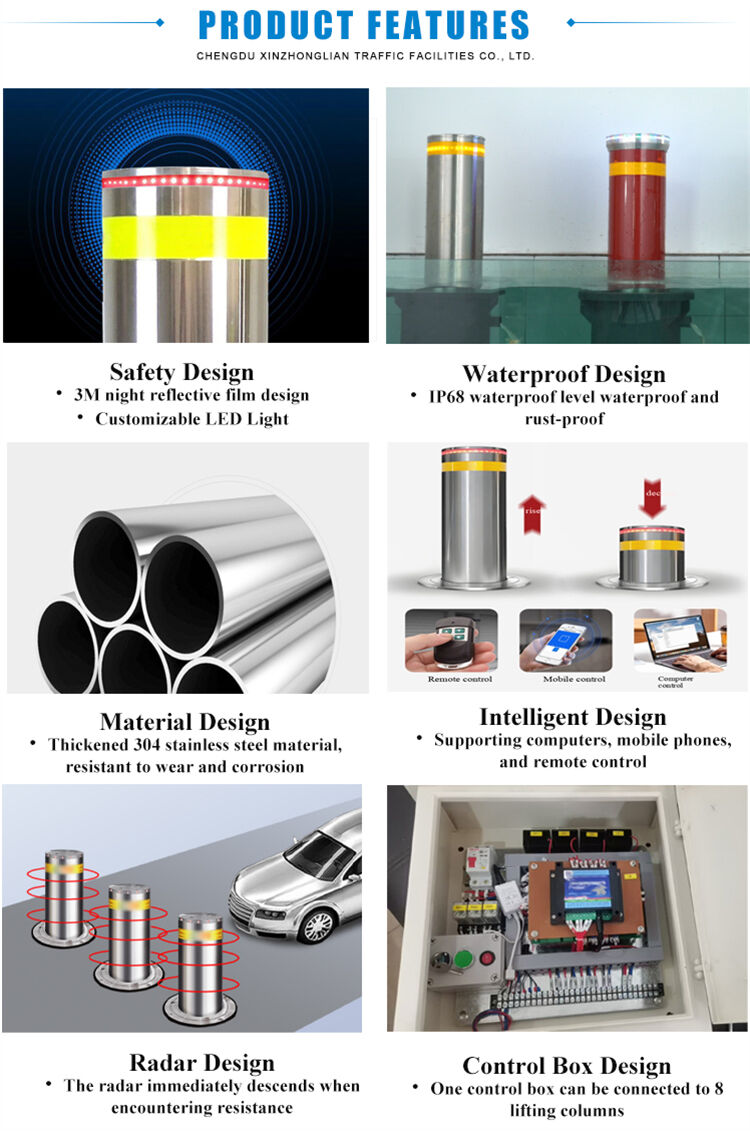

KEY FEATURES

◆Lifting Height：Small Size (30-50cm)、Medium Size (50-80cm)、Large Size (80-120cm)

◆Column Diameter ：Small Size (12.7-16.8cm)、Medium Size (16.8-21.9cm)、Large Size (21.9-27.3cm)

◆Material：304/316 Stainless Steel

◆Wall Thickness ：0.8-1.2cm (Customizable)

◆Drive Type：Electro-hydraulic Drive

◆Anti-Ram Rating ：K4-K8 (K4: Resists 4-ton vehicle at 40km/h; K8: Resists 8-ton vehicle at 60km/h)

◆Load-Bearing Capacity ：50-60 Tons

◆Protection Level ：IP68 (Workable under 2m water immersion)

◆Temperature Resistance Range：-40℃ to +80℃

◆Working Pressure ：7-14MPa (Customizable 5-20MPa)

◆Lifting Time ：2.5-4 Seconds

◆Lowering Time ：1.5-3 Seconds

◆Control Modes：Remote Control、License Plate Recognition、Ground Loop Detection、Bluetooth、APP Monitoring、Access Control Integration

◆Sealing Structure ：Fully Sealed (Dustproof & Waterproof)

◆Core Component Service Life ：Over 1.2 Million Cycles

◆Installation Type ：Integrated Type (All-in-one)、Split Type

◆Reflective Component：High-visibility Reflective Film

◆Reflective Standard ：GB/T 18833 / EN 12899

◆Reflective Brightness：≥250cd/lx

◆OEM Service ：Column Thickness/Diameter Customization、Logo/Text Customization (Screen Printing)、Control System Tailoring

◆Application ：Government Facilities、Airports/Railway Stations、Schools & Campuses、Commercial Plazas、Residential Communities、Bank Vaults、Pedestrian Streets、Underground Garages、Temporary Construction Zones

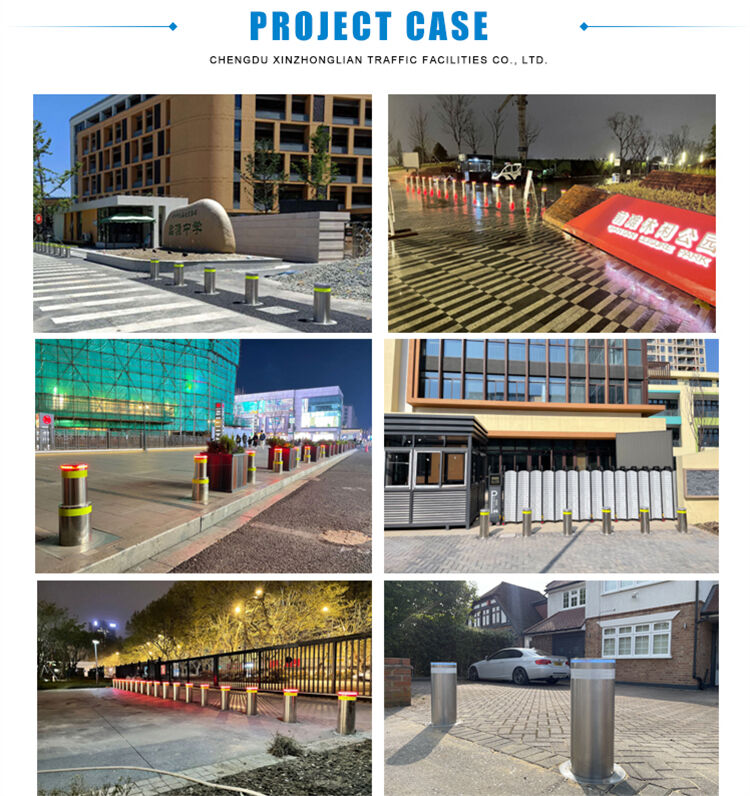

APPLICATION

Automatic hydraulic bollards have become core equipment for security and traffic management, widely applied in various scenarios due to their flexible access control and reliable protection capabilities. In government facilities, military bases, and embassies, they rely on high anti-ram ratings (up to K8) to resist vehicle attacks and prevent unauthorized intrusion, forming the first line of defense for critical infrastructure.

At transportation hubs like airports, railway stations, and subway entrances, these bollards realize efficient separation of pedestrians and vehicles. Equipped with license plate recognition and ground loop detection, they quickly lift to block unknown vehicles and lower automatically for authorized ones, ensuring smooth flow while enhancing security. For schools and campuses, they are deployed at entrances to avoid vehicle intrusions during peak hours, safeguarding the safety of students and staff.

In commercial plazas, shopping malls, and residential communities, they achieve human-vehicle separation: rising to restrict non-resident vehicles and lowering to allow convenient passage for residents and customers. Bank vaults, gas stations, and power substations use their robust load-bearing capacity and IP68 protection to maintain 24/7 security even in harsh environments. Pedestrian streets and historical districts adopt them to ban motor vehicles, preserving a safe and peaceful space for pedestrians.

Additionally, they are essential in temporary construction zones and urban light-traffic roads for flexible traffic diversion during maintenance. With strong adaptability and intelligent integration, they play a key role in smart city construction and perimeter security.

FAQ

Q1: What is the difference between integrated and split-type hydraulic bollards?

A1: The integrated type integrates the power unit (motor, oil pump, oil tank) into the bollard body, requiring no underground oil pipes, suitable for small-to-medium entrances with limited installation space. The split type has a separate power station connected to multiple bollards via oil pipes, ideal for large-scale projects (e.g., stadiums) that need synchronous control of 2-12 bollards.

Q2: What anti-ram ratings do your bollards support, and what do they mean?

A2: We offer anti-ram ratings from K4 to K8. K4 resists a 4-ton vehicle at 40km/h; K8 resists an 8-ton vehicle at 60km/h. All bollards meet international anti-collision standards, and custom ratings (up to K12) are available for special high-security projects.

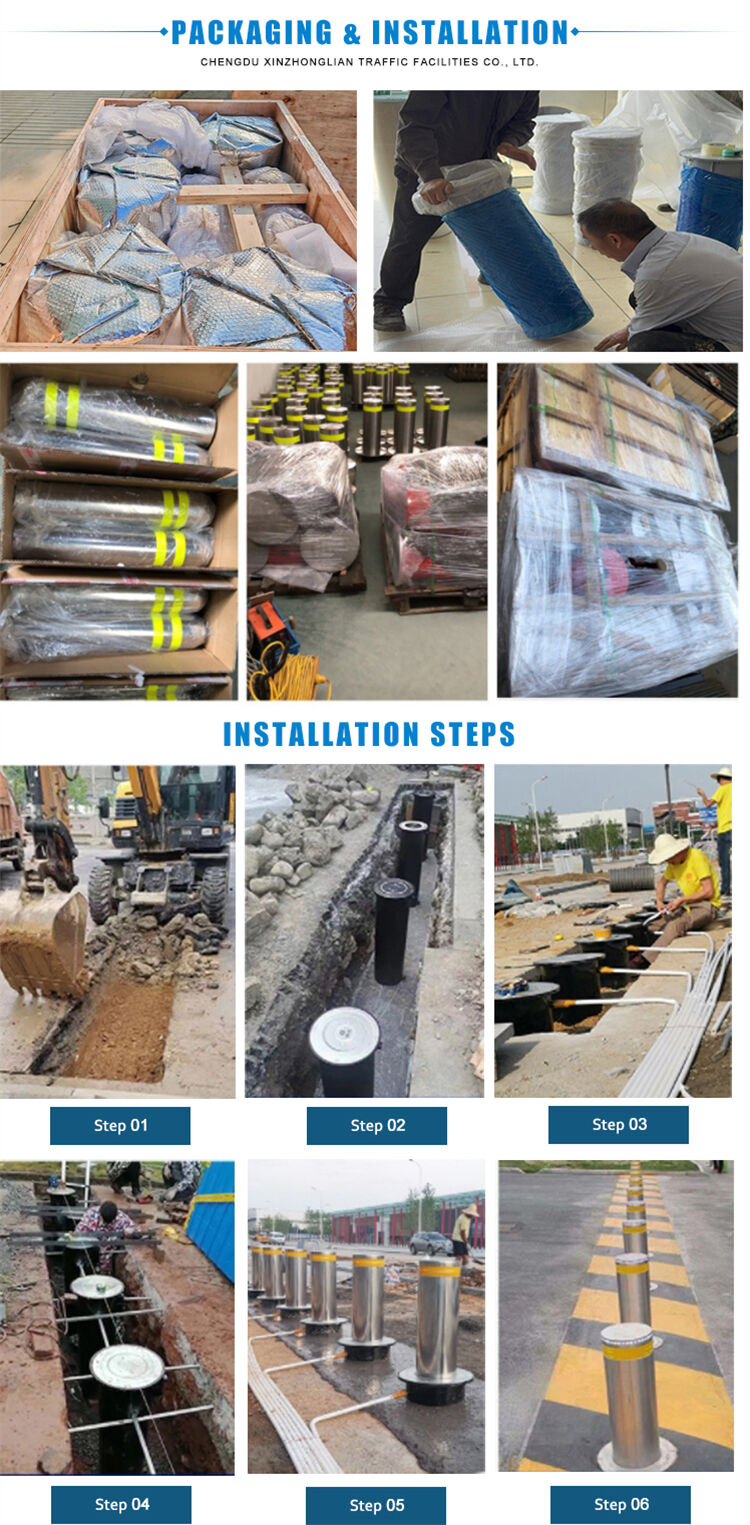

Q3: Do you provide installation guidance, and is professional installation required?

A3: We provide a detailed English installation manual (with diagrams), video tutorials, and online technical support. For integrated bollards, simple foundation construction is needed, and local teams can install them after training. For split-type bollards, we recommend professional installation, and we can arrange on-site guidance for large orders.

Q4: What certifications do your products have for export?

A4: All bollards have CE, ISO9001, and IP68 (waterproof and dustproof) certifications. The reflective film meets EN 12899 and GB/T 18833 standards. We can provide additional certifications (e.g., FCC, ROHS) according to the import requirements of your country/region.

Q5: Can the bollards work in extreme weather conditions?

A5: Yes. The temperature resistance range is -40℃ to +80℃, suitable for cold regions (e.g., Northern Europe) and high-temperature areas (e.g., the Middle East). With IP68 protection, they can work normally even under 2m water immersion, adapting to rainy or flood-prone areas.

Q6: Are customization services available (e.g., size, color, logo)?

A6: Yes. Customizable parameters include: column diameter (127-273mm), lifting height (300-1200mm), wall thickness (0.8-1.2cm). We offer powder coating in RAL colors and screen printing for logos/text. Minimum order quantity (MOQ) for customization is 10 units.

Q7: What is the warranty period, and how do you handle after-sales issues?

A7: We provide a 2-year warranty for core components (motor, hydraulic pump) and 1 year for the whole machine. If there is a quality problem, we will send replacement parts by DHL/FedEx for free within the warranty period. For out-of-warranty issues, we offer cost-effective spare parts and lifelong technical support.

Q8: What is the lead time and shipping method?

A8: For standard models, the lead time is 7-15 working days; for customized models, it is 20-30 working days. Shipping methods include sea freight (for large orders, cost-effective), air freight (fast delivery), and express (DHL/FedEx, door-to-door). We can ship to any port or address as required.

Q9: What payment terms do you accept?

A9: We accept T/T (30% deposit, 70% balance before shipment), L/C at sight (for large orders), and Western Union (for small sample orders). PayPal is also available for sample payments.

Q10: Can the bollards be integrated with our existing security system?

A10: Yes. They support integration with access control systems, video surveillance, and parking management systems via dry contact or RS485 communication. Common control modes (license plate recognition, Bluetooth, APP) are compatible with most international security protocols.
