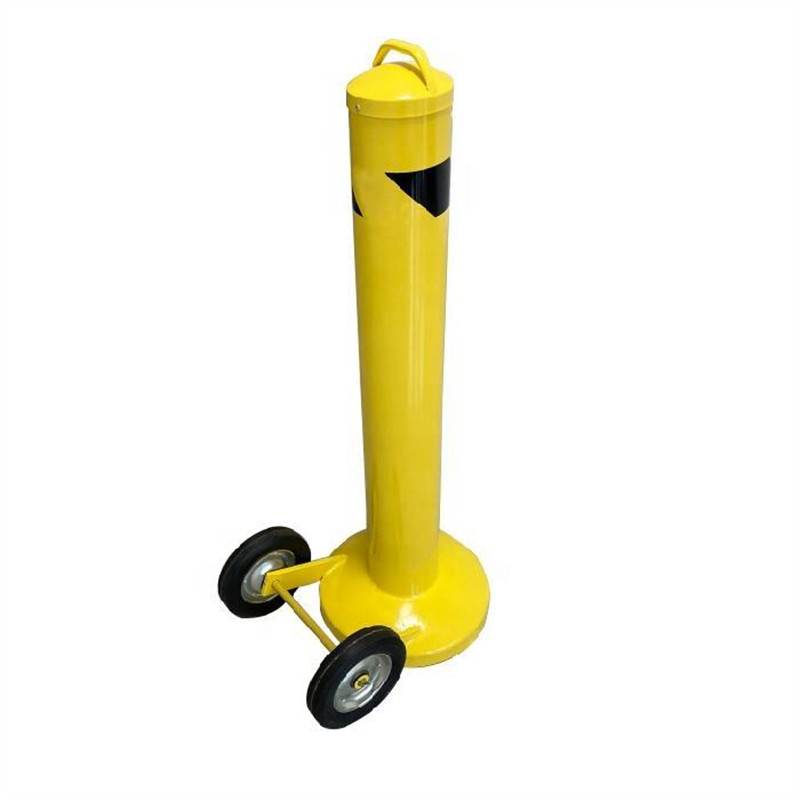

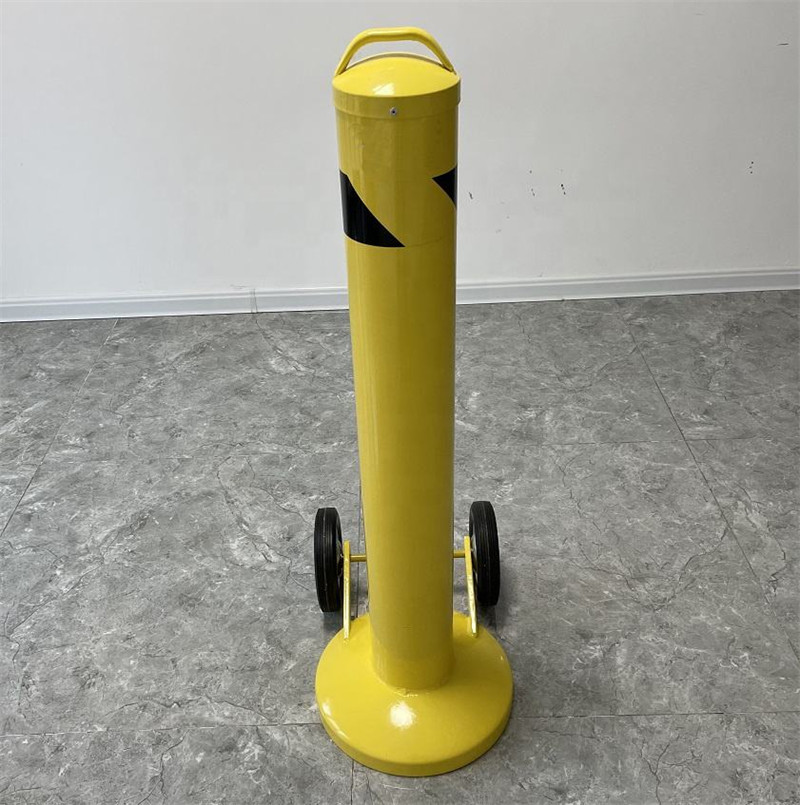

XZL‑KYD12 is special wheel‑base portable removable bollard, adopt inch‑unit dimension: 24in,36in,42in,48in height options, multiple diameter choices, 3mm carbon steel construction. Built‑in transport wheels greatly reduce moving labor work, realize fast relocation for temporary traffic‑control scenarios. Lockable demountable structure, this movable bollard can be quickly pushed to target position for event site, temporary parking management. Powder‑coated carbon‑steel surface provides outdoor anti‑rust performance. Ideal for temporary event, construction site and short‑term traffic restriction application.


| Product Model | SKU Code | Diameter | Height | Thickness | Material |
| XZL-KYD01 | XZL-KYD01-D70H790T3 | 70 | 790 | 3 | Carbon steel |
| XZL-KYD13 | XZL-KYD13-D100H1100T3 | 100 | 1100 | 3 | Carbon steel |
| XZL-KYD02 | XZL-KYD02BXG-D114H900T3 | 114 | 900 | 3 | Carbon steel |
| XZL-KYD02TG-D114H900T3 | 114 | 900 | 3 | 304SS/316SS | |
| XZL-KYD04 | XZL-KYD04-D89H965T3 | 89 | 965 | 3 | Carbon steel |
| XZL-KYD05 | XZL-KYD05-D89H960T3 | 89 | 960 | 3 | 304SS/316SS |
| XZL-KYD05-D140H1200T3 | 140 | 1200 | 3 | 304SS/316SS | |
| XZL-KYD06 | XZL-KYD06-D89H960T3 | 89 | 960 | 3 | Carbon steel |
| XZL-KYD06-D140H1200T3 | 140 | 1200 | 3 | Carbon steel | |
| XZL-KYD07 | XZL-KYD07-D89H960T3 | 89 | 960 | 3 | Carbon steel |
| XZL-KYD07-D140H1200T3 | 140 | 1200 | 3 | Carbon steel | |
| XZL-KYD08 | XZL-KYD08-D140H900T3 | 140 | 900 | 3 | Carbon steel |
| XZL-KYD08-D168H900T3 | 168 | 900 | 3 | Carbon steel | |
| XZL-KYD09 | XZL-KYD09-D89H1000T3 | 89 | 1000 | 3 | Q235 Steel/304SS/316SS |
| XZL-KYD09-D140H1200T3 | 140 | 1200 | 3 | Q235 Steel/304SS/316SS | |
| XZL-KYD10 | XZL-KYD10BXG-D89H1020T3 | 89 | 1020 | 3 | 304SS/316SS |
| XZL-KYD10BXG-D114H1020T3 | 114 | 1020 | 3 | 304SS/316SS | |
| XZL-KYD10TG-D89H1020T3 | 89 | 1020 | 3 | Carbon steel | |
| XZL-KYD10TG-D140H1020T3 | 140 | 1020 | 3 | Carbon steel | |
| XZL-KYD12 | XZL-KYD12-D89H24inT3 | 89 | 24in | 3 | Carbon steel |
| XZL-KYD12-D114H36inT3 | 114 | 36in | 3 | Carbon steel | |
| XZL-KYD12-D140H42inT3 | 140 | 42in | 3 | Carbon steel | |
| XZL-KYD12-D165H48inT3 | 165 | 48in | 3 | Carbon steel | |
| XZL-KYD11 | XZL-KYD11BXG-D4inH36inT3 | 4in | 36in | 3 | 304SS/316SS |
| XZL-KYD11BXG-D6inH36inT3 | 6in | 36in | 3 | 304SS/316SS | |
| XZL-KYD11TG-D4inH36inT3 | 4in | 36in | 3 | Carbon steel | |
| XZL-KYD11TG-D6inH36inT3 | 6in | 36in | 3 | Carbon steel |

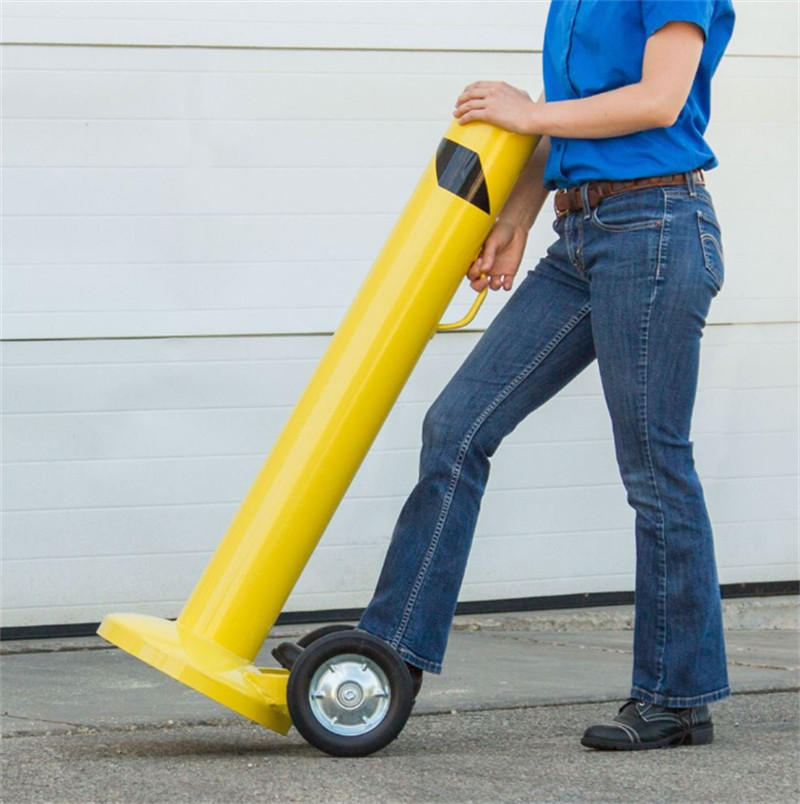

*Built‑in Transport Wheel Base: Portable wheeled design, easy push‑and‑move without heavy lifting work.
*Inch‑Unit Standard Sizes: 24in /36in /42in /48in height options for overseas project customary dimension requirement.
*Lockable Demountable Removable Design: Realize temporary access‑control for event‑site traffic management.
*3mm Thick Carbon‑Steel Tube: Reliable strength for temporary protective bollards usage.
*Powder‑coated Anti‑rust Finish: Adapt outdoor open‑air temporary working environment.
*Fast‑deploy Portable Bollard: Perfect for non‑fixed temporary traffic‑control scenarios.

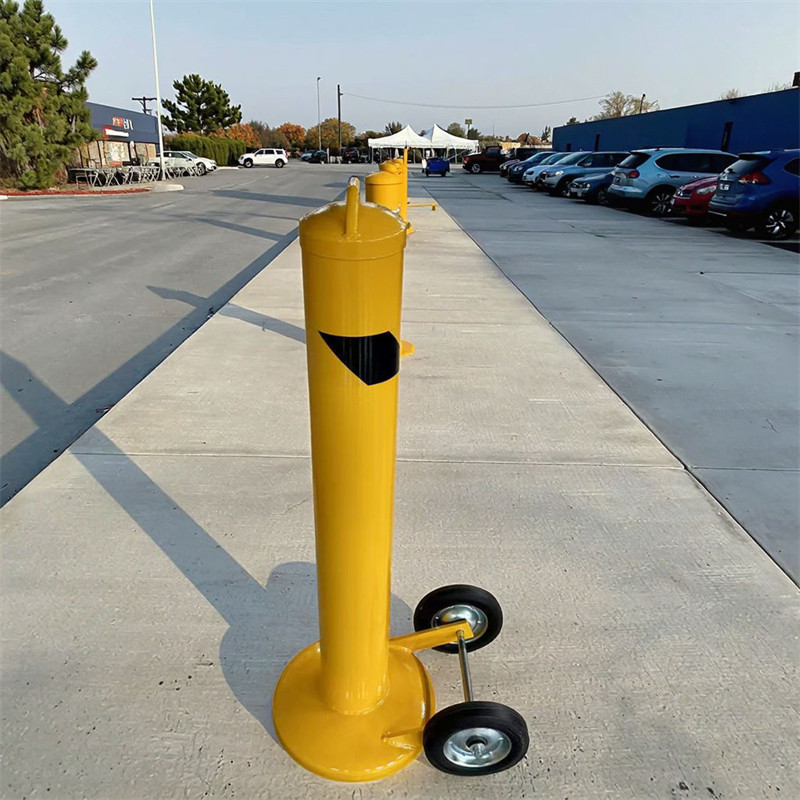

This wheel‑base inch‑unit portable movable security post is purpose‑built for frequently‑relocated temporary‑traffic‑control projects for overseas markets. 24in short‑height variant suits small‑scale pop‑up‑event perimeter marking, retail‑promotion temporary‑crowd‑separation. 36in‑42in middle‑height versions apply for outdoor‑exhibition‑site boundary‑isolation, construction‑site temporary‑lane‑division, market‑fair‑access‑restriction. 48in high‑height variant delivers long‑distance warning for large‑outdoor‑event, festival‑activity‑site traffic‑separation, temporary‑construction‑zone‑warning. Wheels are only for transportation; after moving to target‑spot, fix the bollard with bolt‑down locking‑mechanism to achieve anti‑collision protective‑function. It fits rental‑company bollards‑for‑hire‑business, temporary‑traffic‑management‑contractors and overseas‑event‑organizers. The inch‑unit dimension conforms to North‑American and European market customary‑specification.

Chengdu Xinzhonglian Traffic Facilities Co.,Ltd. focusing on the field of traffic facilities, is a large and medium-sized traffic facilities production enterprise integrating research and development, production, processing and sales. It has passed the mass production certificate of traffic engineering products of the Ministry of Communications, and is one of the early enterprises engaged in the research and production of high-grade traffic safety products in China. We have our own factory in Chengdu, covering an area of about 33,340 square meters, with an annual output of 48,000 tons. We have 5 senior technicians, 8 intermediate technicians and 12 junior technicians. The total number of employees in the factory is about 200. We have made great progress. At present, we have advanced production equipment, perfect technological process, strict quality control system and accurate testing means. Our main products include is flexible Bollard, stainless steel fixed Bollard, removable bollard, solar light bollard,manual lifting bollard, semi-automatic rising bollard and hydraulic automatic bollard.






*Custom inch‑unit or metric‑unit dimension for wheeled portable removable bollard.
*Custom powder‑coated safety color such as yellow, orange for event‑site visibility.
*Add high‑brightness reflective film for night‑time temporary traffic safety.
*Upgrade material to 304SS / 316SS stainless steel for corrosive outdoor environment.
*Optimize wheel‑base structure for heavy‑load bollard post.
*Laser engrave custom event‑mark or warning text on bollard surface.
*Supply matched padlock accessories for wheel‑base movable bollard.
*Custom‑design packing for event‑rental bulk‑bollards order.


Q1: Can wheeled bollard stay fixed against vehicle minor impact?
A1: Wheels are only for relocation‑transport. In working state you must lock and fasten bollard onto concrete ground; wheels shall not bear collision‑force.
Q2: All sizes for XZL‑KYD12 use inch unit?
A2: Standard product uses inch‑based dimension for overseas‑market habit, metric‑unit dimension can be custom‑made upon custom‑service request.
Q3: Is stainless steel material available for wheel‑base portable bollard?
A3: Yes, material upgrade to 304SS /316SS stainless‑steel is supported for high‑humidity or coastal‑adjacent temporary‑sites.
Q4: What ground‑requirement for working‑state installation?
A4: Need solid flat‑concrete ground. Uneven ground will affect locking‑fastening‑effect in working‑mode.
Q5: Does standard‑set contain padlock?
A5: Padlock is not standard‑included. Heavy‑duty padlock for event‑site usage can be supplied as optional‑accessory.
Q6: What maintenance tips for wheel‑base portable bollard?
A6: Keep wheel‑axle clean and flexible, avoid sand‑and‑gravel jamming wheel‑rotation. Protect powder‑coated surface from collision‑scratch. Inspect bolt‑locking‑parts before each‑event deployment.
Q7: Can reflective warning film and chain‑holes be custom‑processed?
A7: Yes, reflective strips and side chain‑connection holes can be custom‑made for bulk‑order quantity.
Q8: Can you provide inch‑unit CAD drawings for overseas‑project tender?
A8: Yes, we can provide inch‑marked technical‑drawings, spec‑sheet and packing‑documents for overseas‑bidding‑project.
