XZL‑KYD07 removable bollard adopts special flat‑top handle design for convenient manual lifting during disassembly. Two dimension choices: D89 H960 and heavy‑duty D140 H1200,3mm thick carbon‑steel tube. Powder‑coated surface offers outdoor anti‑rust performance. Lockable demountable movable bollard uses bolt‑down surface‑mount installation. Built‑in top handle greatly improves handling efficiency, perfect for scenarios that require frequent bollard removing and resetting, such as private driveway, frequent‑access parking bay and domestic security bollards application.


| Product Model | SKU Code | Diameter | Height | Thickness | Material |
| XZL-KYD01 | XZL-KYD01-D70H790T3 | 70 | 790 | 3 | Carbon steel |
| XZL-KYD13 | XZL-KYD13-D100H1100T3 | 100 | 1100 | 3 | Carbon steel |
| XZL-KYD02 | XZL-KYD02BXG-D114H900T3 | 114 | 900 | 3 | Carbon steel |
| XZL-KYD02TG-D114H900T3 | 114 | 900 | 3 | 304SS/316SS | |
| XZL-KYD04 | XZL-KYD04-D89H965T3 | 89 | 965 | 3 | Carbon steel |
| XZL-KYD05 | XZL-KYD05-D89H960T3 | 89 | 960 | 3 | 304SS/316SS |
| XZL-KYD05-D140H1200T3 | 140 | 1200 | 3 | 304SS/316SS | |
| XZL-KYD06 | XZL-KYD06-D89H960T3 | 89 | 960 | 3 | Carbon steel |
| XZL-KYD06-D140H1200T3 | 140 | 1200 | 3 | Carbon steel | |
| XZL-KYD07 | XZL-KYD07-D89H960T3 | 89 | 960 | 3 | Carbon steel |
| XZL-KYD07-D140H1200T3 | 140 | 1200 | 3 | Carbon steel | |
| XZL-KYD08 | XZL-KYD08-D140H900T3 | 140 | 900 | 3 | Carbon steel |
| XZL-KYD08-D168H900T3 | 168 | 900 | 3 | Carbon steel | |
| XZL-KYD09 | XZL-KYD09-D89H1000T3 | 89 | 1000 | 3 | Q235 Steel/304SS/316SS |
| XZL-KYD09-D140H1200T3 | 140 | 1200 | 3 | Q235 Steel/304SS/316SS | |
| XZL-KYD10 | XZL-KYD10BXG-D89H1020T3 | 89 | 1020 | 3 | 304SS/316SS |
| XZL-KYD10BXG-D114H1020T3 | 114 | 1020 | 3 | 304SS/316SS | |
| XZL-KYD10TG-D89H1020T3 | 89 | 1020 | 3 | Carbon steel | |
| XZL-KYD10TG-D140H1020T3 | 140 | 1020 | 3 | Carbon steel | |
| XZL-KYD12 | XZL-KYD12-D89H24inT3 | 89 | 24in | 3 | Carbon steel |
| XZL-KYD12-D114H36inT3 | 114 | 36in | 3 | Carbon steel | |
| XZL-KYD12-D140H42inT3 | 140 | 42in | 3 | Carbon steel | |
| XZL-KYD12-D165H48inT3 | 165 | 48in | 3 | Carbon steel | |
| XZL-KYD11 | XZL-KYD11BXG-D4inH36inT3 | 4in | 36in | 3 | 304SS/316SS |
| XZL-KYD11BXG-D6inH36inT3 | 6in | 36in | 3 | 304SS/316SS | |
| XZL-KYD11TG-D4inH36inT3 | 4in | 36in | 3 | Carbon steel | |
| XZL-KYD11TG-D6inH36inT3 | 6in | 36in | 3 | Carbon steel |

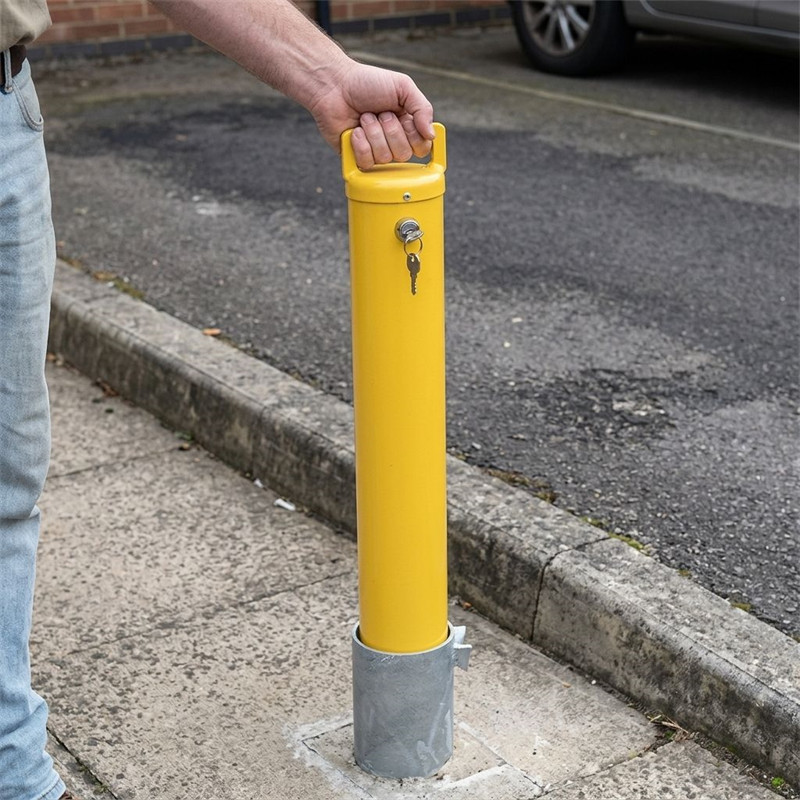

*Built‑in Flat‑Top Lifting Handle: Convenient for manual carry when dismounting movable bollard.
*Two Dimension Selections: D89 compact size for residential driveway; D140 heavy‑duty for commercial car‑park.
*3mm Thick Carbon‑Steel Body: Reliable mechanical strength for traffic boundary protection.
*Lockable Demountable Removable Structure: Prevent unauthorized removal for private parking spot protection.
*Powder‑coated Anti‑rust Surface Treatment: Adapt long‑term outdoor working condition.
*Bolt‑Down Surface‑mount Installation: Easy retrofit on existing concrete pavement.

This flat‑top lifting‑handle‑equipped demountable bollard is purpose‑built for locations requiring frequent removal and reinstallation of traffic‑security posts. Compact D89‑H960 fits private residential driveway where delivery vehicles visit regularly, household private parking‑bay with intermittent access‑permission, small‑community fire‑exit passage temporary‑isolation. Heavy‑duty D140‑H1200 variant applies for commercial parking lot variable‑lane management, event‑venue temporary‑traffic‑control, retail‑plaza service‑entrance access‑adjustment, industrial‑park auxiliary‑gate flexible‑restriction. As movable parking security post, the integrated lifting‑handle eliminates the trouble of gripping smooth tube surface during disassembly. Property‑management staff can quickly lift out the bollard to grant vehicle passage and place it back for boundary‑protection. This domestic security bollard is widely selected for housing estates, commercial‑plaza operators and event‑management contractors for inland non‑coastal projects.

Chengdu Xinzhonglian Traffic Facilities Co.,Ltd. focusing on the field of traffic facilities, is a large and medium-sized traffic facilities production enterprise integrating research and development, production, processing and sales. It has passed the mass production certificate of traffic engineering products of the Ministry of Communications, and is one of the early enterprises engaged in the research and production of high-grade traffic safety products in China. We have our own factory in Chengdu, covering an area of about 33,340 square meters, with an annual output of 48,000 tons. We have 5 senior technicians, 8 intermediate technicians and 12 junior technicians. The total number of employees in the factory is about 200. We have made great progress. At present, we have advanced production equipment, perfect technological process, strict quality control system and accurate testing means. Our main products include is flexible Bollard, stainless steel fixed Bollard, removable bollard, solar light bollard,manual lifting bollard, semi-automatic rising bollard and hydraulic automatic bollard.






*Custom bollard diameter and height for handle‑type removable security post.
*Custom powder‑coated safety color: yellow, orange, black and other RAL colors.
*Add high‑brightness reflective film for night‑warning traffic safety.
*Upgrade material to 304SS / 316SS stainless steel for corrosive environment.
*Custom‑made bolt‑down base plate for special pavement requirement.
*Laser engrave custom logo or warning sign on bollard post surface.
*Supply matched padlock and metal chain accessories for bollards system.
*Provide technical drawing for tender project documents.


Q1: What is advantage of flat‑top handle compare to ordinary removable bollard?
A1: The integrated handle helps operator lift heavy bollard post without extra gripping tool, save working time for frequent‑removal usage scenarios.
Q2: Can this handle‑type bollard be buried in ground?
A2: This is surface‑mount bolt‑down bollard, it is not designed for full in‑ground burial installation.
Q3: Can I get yellow / orange safety color for this demountable bollard?
A3: Yes, custom powder‑coated yellow, orange and other RAL safety‑colors are supported under custom‑service for bulk‑order.
Q4: What kind of ground is suitable for installation?
A4: Must install onto solid reinforced‑concrete ground. Asphalt or soft ground will lead to base‑loosening after impact.
Q5: Does standard unit come with padlock?
A5: Padlock is not included as standard accessory. Matching padlock can be ordered as optional part.
Q6: What maintenance points for lifting‑handle movable bollard?
A6: Keep handle free of heavy‑impact deformation. Inspect welding joint between handle and bollard body every 6 months. Maintain powder‑coated surface integrity to avoid rust.
Q7: Can reflective film and chain‑connection holes be custom‑made?
A7: Reflective warning strips and side chain‑mounting holes can both be custom‑processed for bulk‑order projects.
Q8: Can we upgrade material to stainless‑steel for humid‑environment deployment?
A8: Yes, material upgrade to 304SS / 316SS stainless‑steel is available via custom‑service for high‑humidity or coastal‑adjacent sites.
