XZL‑KYD09 multi‑material optional removable bollard supports Q235 carbon steel,304SS,316SS stainless steel three material choices. Two dimension specifications: D89 H1000 and D140 H1200, wall thickness 3mm. This lockable demountable movable bollard adopts bolt‑down surface‑mount installation. Customers can select material according to local environment: Q235 carbon‑steel for cost‑sensitive general project; 304SS for normal outdoor anti‑rust requirement; 316SS for coastal salt‑spray corrosive environment. Widely applied for mixed‑use public project, residential and commercial mixed bollards deployment.


| Product Model | SKU Code | Diameter | Height | Thickness | Material |
| XZL-KYD01 | XZL-KYD01-D70H790T3 | 70 | 790 | 3 | Carbon steel |
| XZL-KYD13 | XZL-KYD13-D100H1100T3 | 100 | 1100 | 3 | Carbon steel |
| XZL-KYD02 | XZL-KYD02BXG-D114H900T3 | 114 | 900 | 3 | Carbon steel |
| XZL-KYD02TG-D114H900T3 | 114 | 900 | 3 | 304SS/316SS | |
| XZL-KYD04 | XZL-KYD04-D89H965T3 | 89 | 965 | 3 | Carbon steel |
| XZL-KYD05 | XZL-KYD05-D89H960T3 | 89 | 960 | 3 | 304SS/316SS |
| XZL-KYD05-D140H1200T3 | 140 | 1200 | 3 | 304SS/316SS | |
| XZL-KYD06 | XZL-KYD06-D89H960T3 | 89 | 960 | 3 | Carbon steel |
| XZL-KYD06-D140H1200T3 | 140 | 1200 | 3 | Carbon steel | |
| XZL-KYD07 | XZL-KYD07-D89H960T3 | 89 | 960 | 3 | Carbon steel |
| XZL-KYD07-D140H1200T3 | 140 | 1200 | 3 | Carbon steel | |
| XZL-KYD08 | XZL-KYD08-D140H900T3 | 140 | 900 | 3 | Carbon steel |
| XZL-KYD08-D168H900T3 | 168 | 900 | 3 | Carbon steel | |
| XZL-KYD09 | XZL-KYD09-D89H1000T3 | 89 | 1000 | 3 | Q235 Steel/304SS/316SS |
| XZL-KYD09-D140H1200T3 | 140 | 1200 | 3 | Q235 Steel/304SS/316SS | |
| XZL-KYD10 | XZL-KYD10BXG-D89H1020T3 | 89 | 1020 | 3 | 304SS/316SS |
| XZL-KYD10BXG-D114H1020T3 | 114 | 1020 | 3 | 304SS/316SS | |
| XZL-KYD10TG-D89H1020T3 | 89 | 1020 | 3 | Carbon steel | |
| XZL-KYD10TG-D140H1020T3 | 140 | 1020 | 3 | Carbon steel | |
| XZL-KYD12 | XZL-KYD12-D89H24inT3 | 89 | 24in | 3 | Carbon steel |
| XZL-KYD12-D114H36inT3 | 114 | 36in | 3 | Carbon steel | |
| XZL-KYD12-D140H42inT3 | 140 | 42in | 3 | Carbon steel | |
| XZL-KYD12-D165H48inT3 | 165 | 48in | 3 | Carbon steel | |
| XZL-KYD11 | XZL-KYD11BXG-D4inH36inT3 | 4in | 36in | 3 | 304SS/316SS |
| XZL-KYD11BXG-D6inH36inT3 | 6in | 36in | 3 | 304SS/316SS | |
| XZL-KYD11TG-D4inH36inT3 | 4in | 36in | 3 | Carbon steel | |
| XZL-KYD11TG-D6inH36inT3 | 6in | 36in | 3 | Carbon steel |
*Three‑grade Material Optional: Q235 carbon steel,304SS,316SS stainless steel for diversified project budget and environment demand.

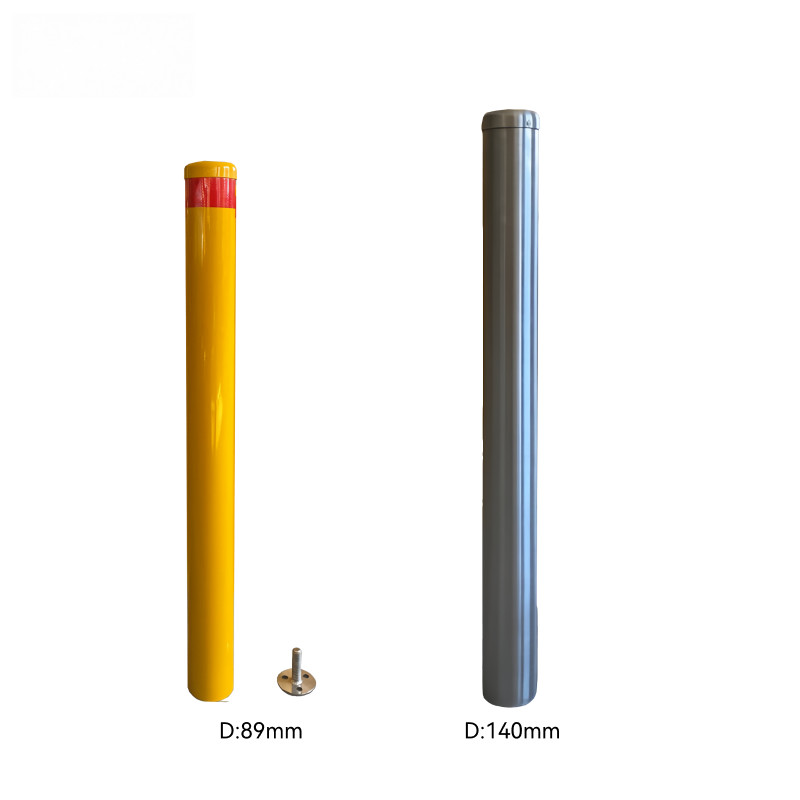

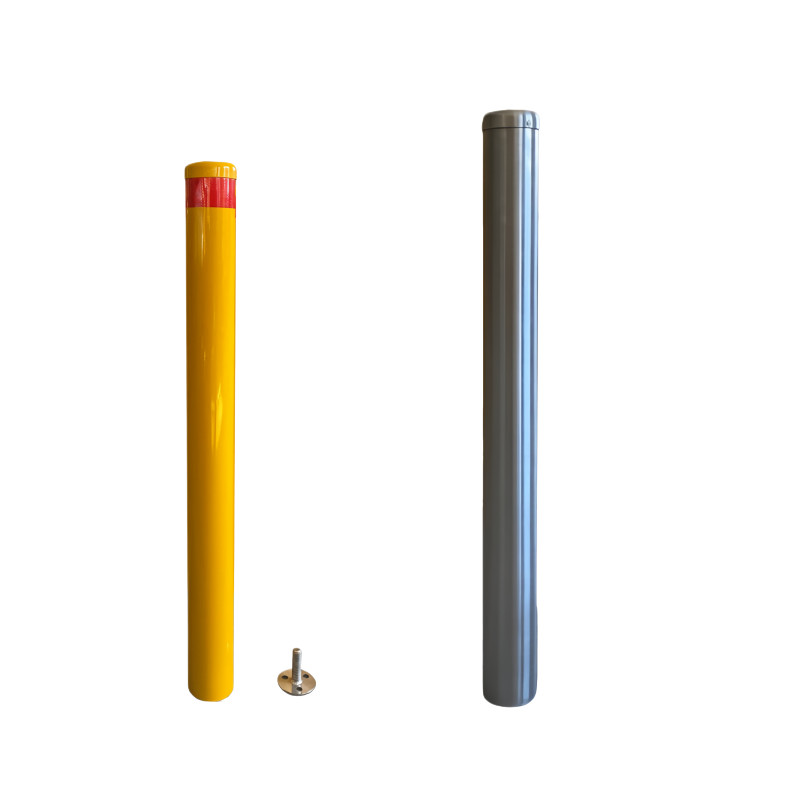

*Two Dimension Options: D89‑H1000 medium size, D140‑H1200 heavy‑duty size for different protection‑level requirement.
*Lockable Demountable Removable Structure: Flexible driveway access control for security posts.
*3mm Thick‑walled Tube: Stable mechanical performance as traffic safety bollard.

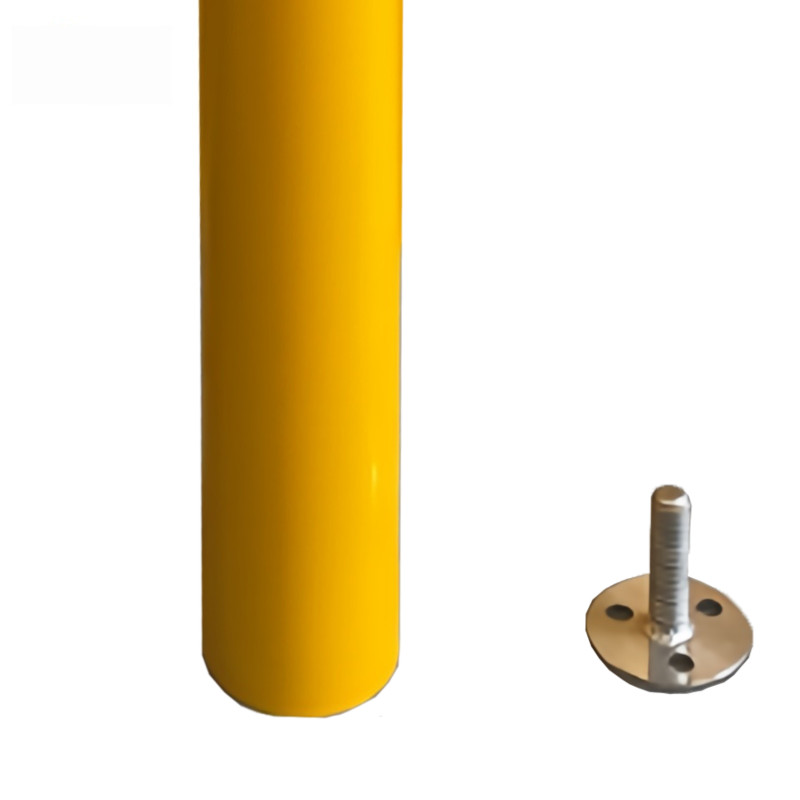

*Bolt‑Down Surface‑mount Installation: Adapt finished concrete pavement for retrofit project.
*Multiple Surface Treatment Available: Powder coating for carbon steel; brushed / polish finish for stainless steel bollards.

This multi‑material‑choice demountable movable security post is ideal for mixed‑use projects containing multiple‑environment zones within one site. Medium‑size D89‑H1000 is suitable for mixed‑residential‑and‑commercial‑community driveway division, multi‑zone public‑parking‑bay reservation, city‑renovation pedestrian‑street boundary‑separation. Heavy‑duty D140‑H1200 works for commercial‑complex auxiliary‑entrance protection, mixed‑use‑industrial‑park access‑control. Project‑planners can select Q235 carbon‑steel for inland dry zones to control procurement‑cost, adopt 304SS for humid non‑coastal zones, and deploy 316SS for partial coastal‑adjacent zones in one large‑site project. This removable security bollard can be used for temporary‑event‑perimeter‑isolation, utility‑equipment auxiliary‑protection and building‑entrance vehicle‑restriction. Surface‑mounted design avoids large‑scale digging‑work for retrofitting existing public‑sites. It is widely chosen for mixed‑condition municipal‑projects, large‑commercial‑complex‑construction and comprehensive housing‑estate development projects.

Chengdu Xinzhonglian Traffic Facilities Co.,Ltd. focusing on the field of traffic facilities, is a large and medium-sized traffic facilities production enterprise integrating research and development, production, processing and sales. It has passed the mass production certificate of traffic engineering products of the Ministry of Communications, and is one of the early enterprises engaged in the research and production of high-grade traffic safety products in China. We have our own factory in Chengdu, covering an area of about 33,340 square meters, with an annual output of 48,000 tons. We have 5 senior technicians, 8 intermediate technicians and 12 junior technicians. The total number of employees in the factory is about 200. We have made great progress. At present, we have advanced production equipment, perfect technological process, strict quality control system and accurate testing means. Our main products include is flexible Bollard, stainless steel fixed Bollard, removable bollard, solar light bollard,manual lifting bollard, semi-automatic rising bollard and hydraulic automatic bollard.






*Free selection among Q235 carbon steel,304SS,316SS stainless steel material.
*Custom bollard diameter and height out of standard specification.
*Custom surface finish: powder coating, brushed, mirror polish.
*Add reflective warning film for roadside traffic safety.
*Custom‑made bolt‑down base plate for special pavement condition.
*Laser engrave project mark, brand logo or warning words.
*Supply supporting padlock and metal chain accessories for parking bollards system.
*Provide material inspection report for government tender project.


Q1: How to select material for XZL‑KYD09 removable bollard?
A1: Q235 carbon‑steel for inland dry general‑site; 304SS for ordinary humid non‑coastal outdoor‑environment; 316SS for coastal salt‑spray seaside‑environment.
Q2: Can I order mixed‑material in one bulk order?
A2: Yes, mixed‑material and mixed‑size bulk‑order is fully‑supported to satisfy multi‑zone site‑deployment.
Q3: What installation base condition is required?
A3: Must install on solid reinforced‑concrete pavement. Cannot mount onto asphalt or soft ground without concrete‑substrate.
Q4: Does standard‑package contain padlock?
A4: Padlock is not standard‑included. We can provide material‑matched padlock accessories for different‑material bollard variants.
Q5: What are the differences of surface‑treatment among three‑material options?
A5: Q235 carbon‑steel needs powder‑coating anti‑rust treatment; 304SS /316SS use brushed‑finish as standard, custom‑polish or coating is available.
Q6: Can reflective strips and side‑chain‑holes be custom‑processed?
A6: Yes, reflective warning film and chain‑connection holes are available custom‑options for bulk‑order quantity.
Q7: What maintenance advices for different‑material bollards?
A7: Q235 carbon‑steel: protect powder‑coating from scratch. Stainless‑steel versions: rinse salt‑deposit for seaside‑application; inspect lock‑and‑base‑bolts every half‑year for all variants.
Q8: Can you supply material‑certificate for government‑tender project?
A8: Yes, we can provide material inspection‑reports, CAD‑drawings and installation‑guidance documents for bidding‑submission.
