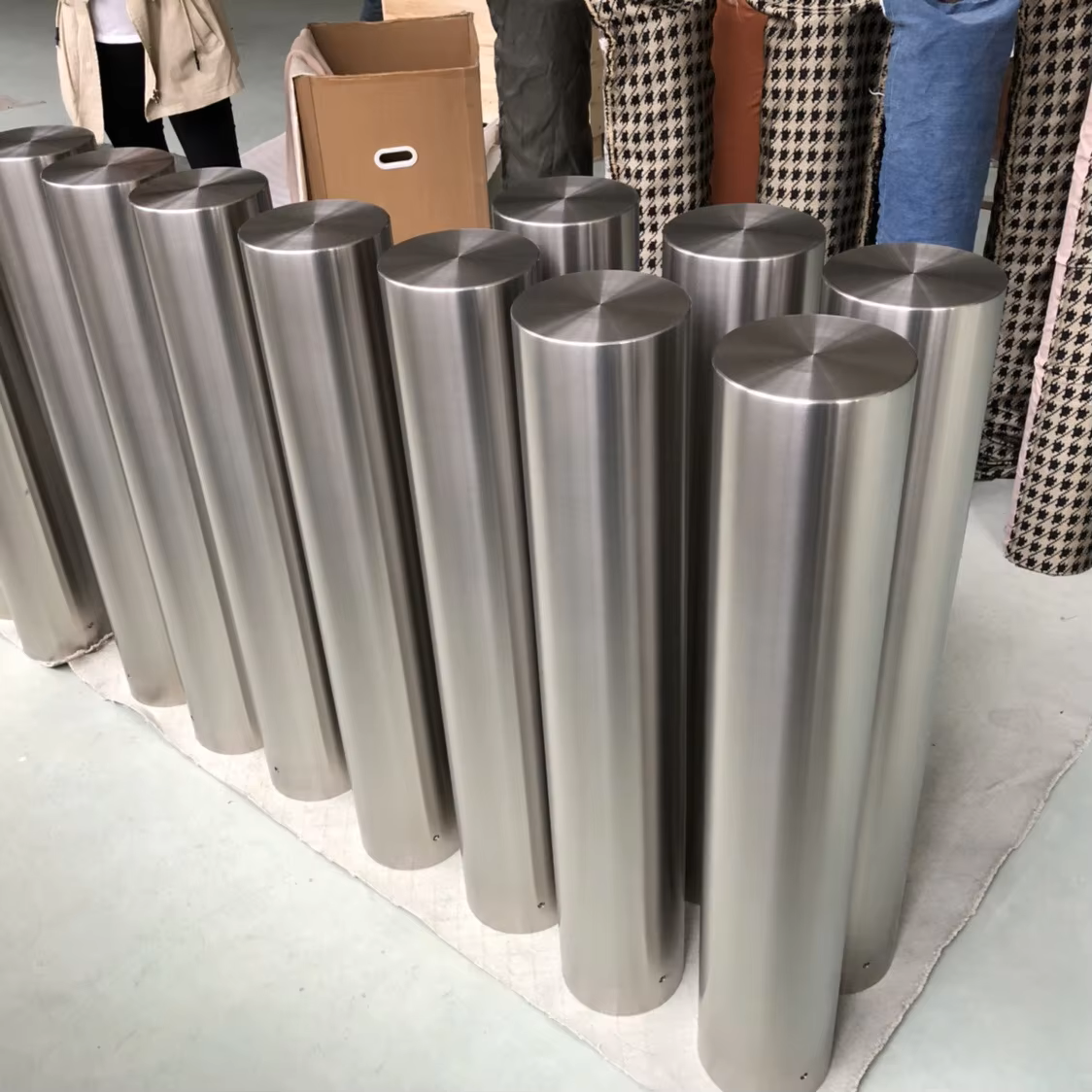

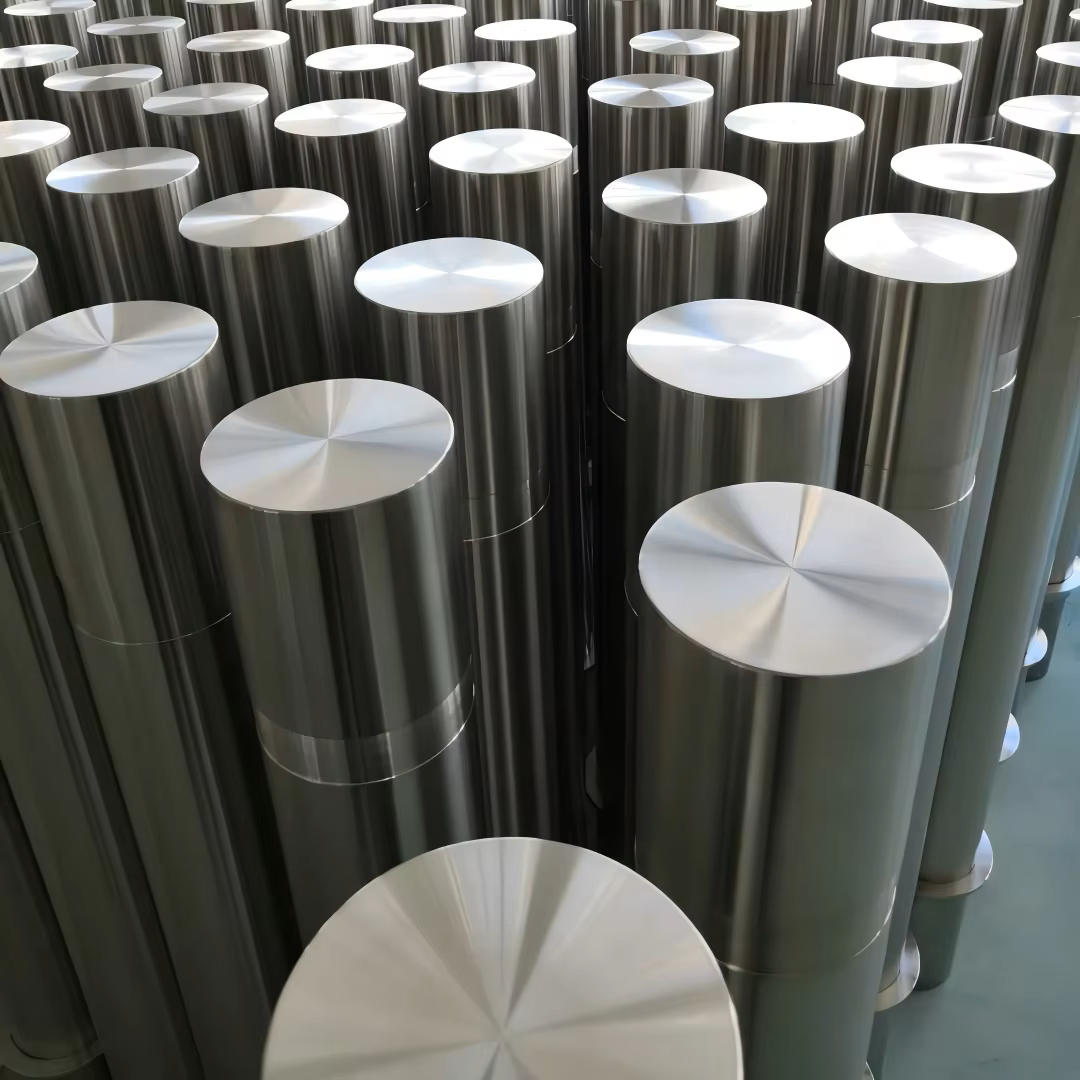

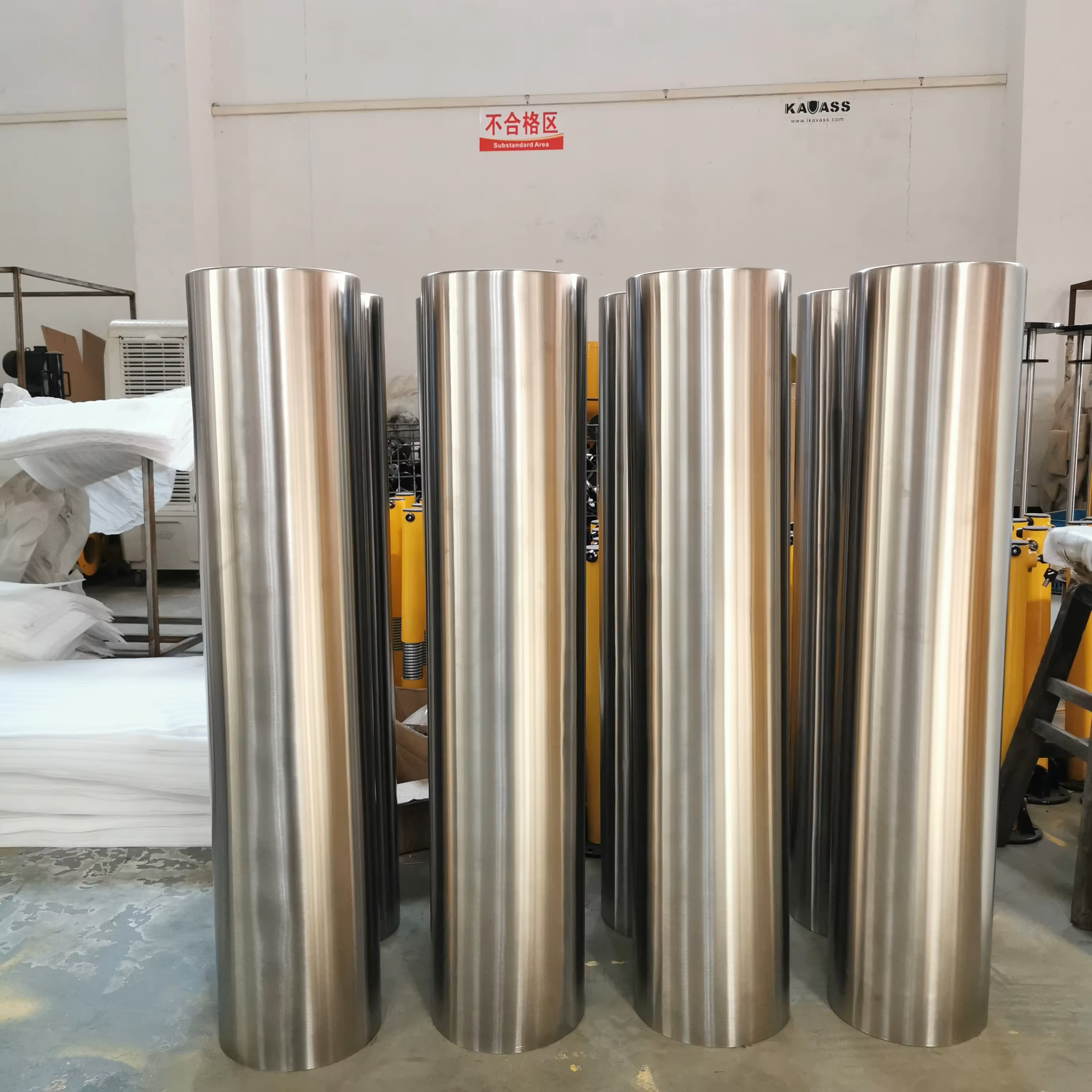

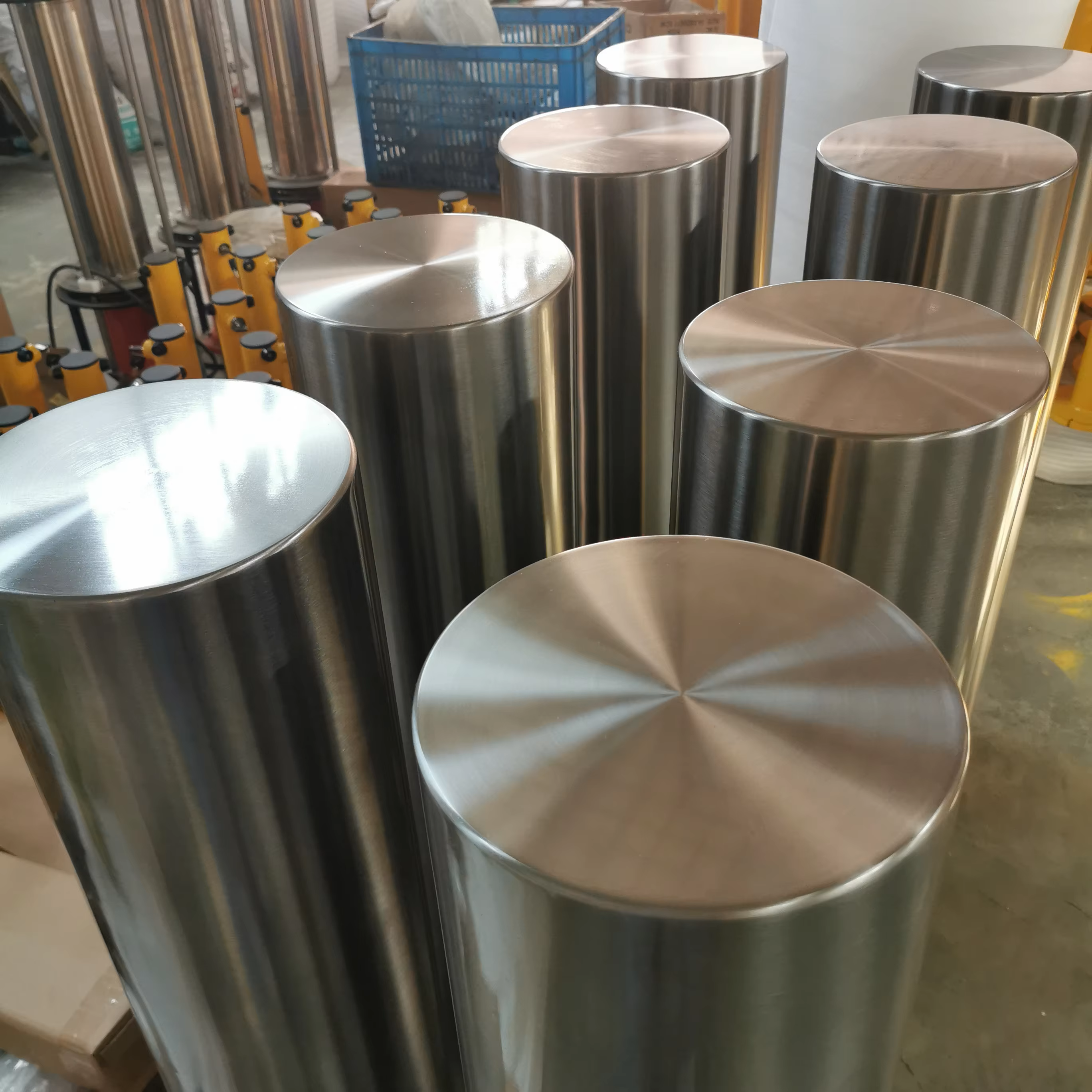

XZL‑GDBXG01 heavy duty fixed stainless steel bollard is flat top design, wall thickness 3mm, available in 304SS or 316SS stainless steel. This solid security bollard provides reliable anti collision performance for vehicle restriction and pedestrian area protection. Multiple diameter options 200mm and 300mm with 1050mm height, widely used for outdoor public space. Polished stainless steel surface brings modern landscape effect for commercial and project sites.


| Product Model | SKU Code | Diameter | Height | Thickness | Material |
| XZL-GDBXG01 | XZL-GDBXG01-D200H1050T3 | 200 | 1050 | 3 | 304SS/316SS |
| XZL-GDBXG01-D300H1050T3 | 300 | 1050 | 3 | 304SS/316SS | |
| XZL-GDBXG02 | XZL-GDBXG02-D114H1050T3 | 114 | 1050 | 3 | 304SS/316SS |
| XZL-GDBXG02-D219H1050T3 | 219 | 1050 | 3 | 304SS/316SS | |
| XZL-GDBXG03 | XZL-GDBXG03-D100H1100T3 | 100 | 1100 | 3 | 304SS/316SS |
| XZL-GDBXG03-D100H900T3 | 100 | 900 | 3 | 304SS/316SS | |
| XZL-GDBXG04 | XZL-GDBXG04-D219H1050T3 | 219 | 1050 | 3 | 304SS/316SS |
| XZL-GDBXG04-D254H1050T3 | 254 | 1050 | 3 | 304SS/316SS | |
| XZL-GDBXG04-D325H1050T3 | 325 | 1050 | 3 | 304SS/316SS | |
| XZL-GDBXG05 | XZL-GDBXG05-D89H900T3 | 89 | 900 | 3 | 304SS/316SS |
| XZL-GDBXG05-D114H1050T3 | 114 | 1050 | 3 | 304SS/316SS | |
| XZL-GDBXG05-D140H1200T3 | 140 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG05-D168H1200T3 | 168 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG05-D220H1200T3 | 220 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG06 | XZL-GDBXG06-D89H900T3 | 89 | 900 | 3 | 304SS/316SS |
| XZL-GDBXG06-D114H1050T3 | 114 | 1050 | 3 | 304SS/316SS | |
| XZL-GDBXG06-D140H1200T3 | 140 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG06-D168H1200T3 | 168 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG06-D220H1200T3 | 220 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG07 | XZL-GDBXG07-D89H900T3 | 89 | 900 | 3 | 304SS/316SS |
| XZL-GDBXG07-D114H1050T3 | 114 | 1050 | 3 | 304SS/316SS | |
| XZL-GDBXG07-D140H1200T3 | 140 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG07-D168H1200T3 | 168 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG07-D220H1200T3 | 220 | 1200 | 3 | 304SS/316SS | |
| XZL-GDBXG08 | XZL-GDBXG08-D89H900T3 | 89 | 900 | 3 | 304SS/316SS |
| XZL-GDBXG08-D140H900T3 | 140 | 900 | 3 | 304SS/316SS | |
| XZL-GDBXG08-D168H900T3 | 168 | 900 | 3 | 304SS/316SS | |
| XZL-GDBXG08-D220H900T3 | 220 | 900 | 3 | 304SS/316SS | |
| XZL-GDBXG09 | XZL-GDBXG09-D89H900T3 | 89 | 900 | 3 | 304SS/316SS |
| XZL-GDBXG09-D114H900T3 | 114 | 900 | 3 | 304SS/316SS | |
| XZL-GDBXG09-D140H900T3 | 140 | 900 | 3 | 304SS/316SS | |
| XZL-GDBXG09-D165H900T3 | 165 | 900 | 3 | 304SS/316SS | |
| XZL-GDBXG09-D219H1000T3 | 219 | 1000 | 3 | 304SS/316SS | |
| XZL-GDBXG10 | XZL-GDBXG10-D89H1300T3 | 89 | 1300 | 3 | 304SS/316SS |
| XZL-GDBXG10-D114H1300T3 | 114 | 1300 | 3 | 304SS/316SS | |
| XZL-GDBXG10-D140H1300T3 | 140 | 1300 | 3 | 304SS/316SS | |
| XZL-GDBXG10-D165H1300T3 | 165 | 1300 | 3 | 304SS/316SS |
◆ Heavy Duty Fixed Stainless Steel Bollard Structure: 3mm thick solid steel body delivers excellent anti collision performance for traffic safety protection.
◆ Flat Top Modern Appearance: Smooth flat top design, polished stainless steel finish fits modern commercial landscape environment.
◆ Dual Material Optional: 304SS for general outdoor use, 316SS for coastal high salt spray corrosion resistance.
◆ Multiple Diameter Options: 200mm and 300mm large diameter for heavy vehicle impact resistance.
◆ Weather Resistant Outdoor Performance: Anti rust and anti oxidation for long‑term outdoor pavement application.
◆ Surface Reflective Film Available: Optional reflective sticker for night warning visibility.

This fixed stainless steel security bollard is suitable for city pavement, commercial plaza, shopping mall entrance, coastal scenic spot, hotel driveway, public pedestrian zone, parking perimeter and building facade protection. Heavy‑duty anti‑collision capacity prevents unauthorized vehicle intrusion for public safety projects.


Chengdu Xinzhonglian Traffic Facilities Co.,Ltd. focusing on the field of traffic facilities, is a large and medium-sized traffic facilities production enterprise integrating research and development, production, processing and sales. It has passed the mass production certificate of traffic engineering products of the Ministry of Communications, and is one of the early enterprises engaged in the research and production of high-grade traffic safety products in China. We have our own factory in Chengdu, covering an area of about 33,340 square meters, with an annual output of 48,000 tons. We have 5 senior technicians, 8 intermediate technicians and 12 junior technicians. The total number of employees in the factory is about 200. We have made great progress. At present, we have advanced production equipment, perfect technological process, strict quality control system and accurate testing means. Our main products include is flexible Bollard, stainless steel fixed Bollard, removable bollard, solar light bollard,manual lifting bollard, semi-automatic rising bollard and hydraulic automatic bollard.





*Custom working height for flat top fixed stainless steel security bollard beyond standard 1050mm
*Optional 304SS or upgraded 316SS stainless steel material for coastal anti‑corrosion requirement
*Custom outer diameter size for special heavy‑duty anti‑collision project demand
*Custom laser engraved brand logo and project code on bollard body for OEM branding
*Custom width color and mounting position of reflective warning film
*Custom bolt hole position and base plate size for surface mounting installation
*Provide custom CAD technical drawings and installation guidance documents
*Support OEM ODM bulk project orders with custom export packaging for global B2B buyers
Q1: What material options are available for XZL‑GDBXG01 fixed stainless steel bollard
A1: We supply 304SS stainless steel for regular outdoor projects and 316SS stainless steel specially for coastal salt‑spray environment for this security bollard.
Q2: Can this traffic bollard withstand vehicle impact
A2: The 3mm thick solid fixed bollard offers good anti‑collision performance for low‑speed vehicle blocking for pedestrian area protection.
Q3: What installation method for this stainless steel bollard
A3: It supports surface bolt down mounting or embedded inground installation according to site ground condition.
Q4: Is reflective film included with the steel safety bollard
A4: Reflective film is optional accessory, you can request it when placing order.
Q5: What is the standard dimension range for XZL‑GDBXG01
A5: Standard height 1050mm, diameter 200mm and 300mm, wall thickness 3mm.
Q6: Is this driveway bollard suitable for seaside projects
A6: Choose 316SS grade stainless steel version, it works perfectly for coastal seaside outdoor scenarios.
Q7: Can I get sample of this fixed security bollard before bulk order
A7: Yes, sample support is available for project evaluation.
Q8: What is the surface finish of this pavement bollard
A8: Standard polished brushed stainless steel finish, other surface treatment can be customized.
