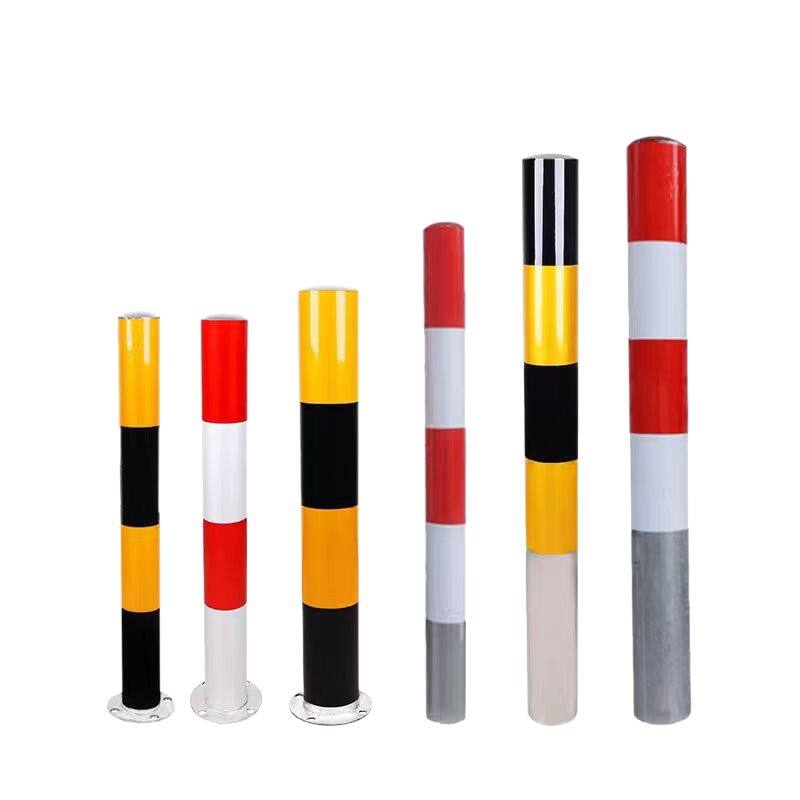

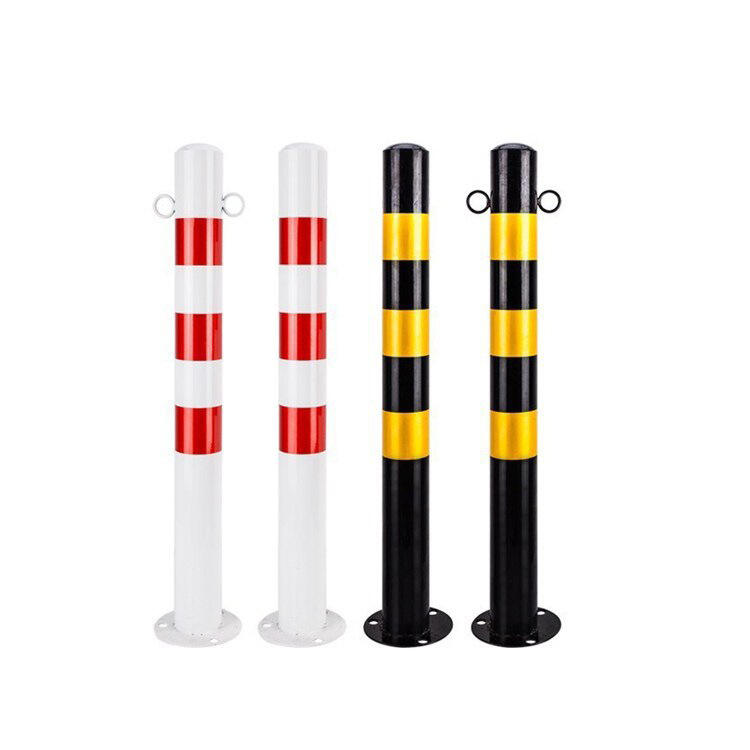

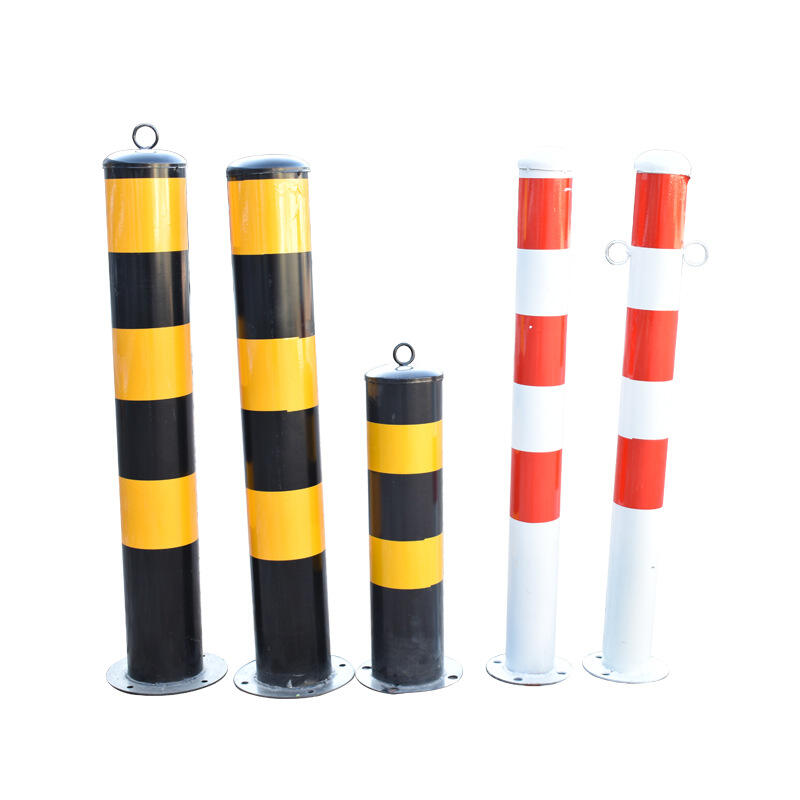

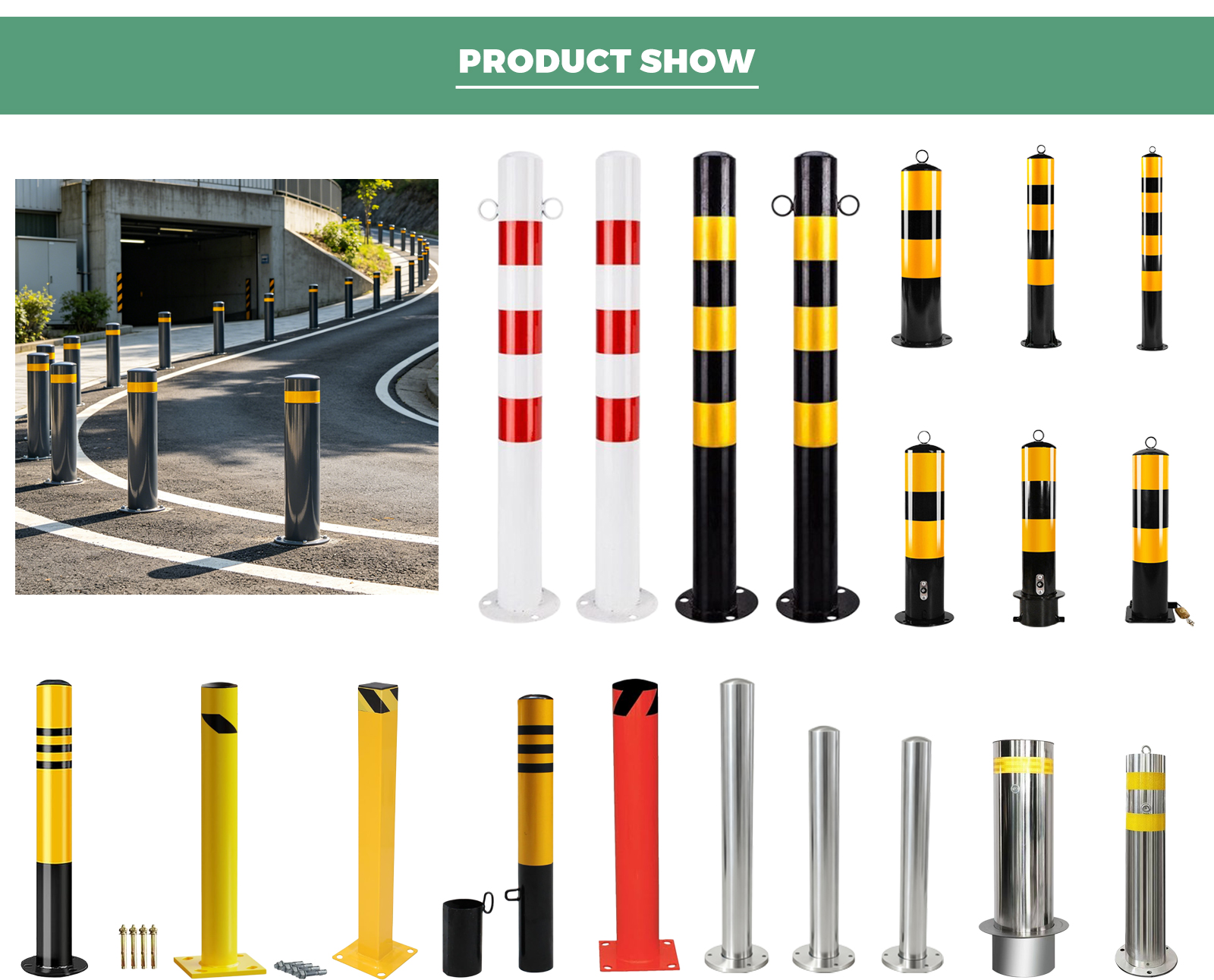

Custom Size Color Anti-Impact Metal Fixed Bollard

Metal Fixed Bollard adopts integrated molding process of high-quality carbon steel/stainless steel, with thickened and reinforced column design, wall thickness of 2-10mm, built-in reinforcing rib structure, excellent impact resistance, which can effectively resist accidental vehicle collision and malicious impact, and build a solid safety line for personnel, facilities and surrounding environment. The surface is treated with electrostatic plastic spraying, baking paint and galvanizing, which is rust-proof, corrosion-resistant, sun-proof and anti-aging, fearless of outdoor wind and rain, suitable for long-term open-air use scenarios. With IP65 protection grade, it can resist rain, dust and mild acid-base erosion, and the operating temperature ranges from -40℃ to +75℃, adapting to various extreme climates, with simple later maintenance and a service life of up to 8-15 years. Adopting two installation methods: flange fixing and embedded installation, it is firmly installed without looseness and not easy to dump. It is widely used in various fixed protection and isolation scenarios, and can customize column specifications, surface technology, logo and warning signs to fully meet personalized protection needs.

Introduction

Metal Fixed Bollard is specially made for fixed protection and isolation scenarios such as municipal roads, commercial parking lots, shopping malls, campuses, residential quarters, factory areas, etc., providing targeted safety protection and area division solutions. The solid metal material with stable fixed installation can not only effectively divide pedestrian and vehicle traffic areas and block illegal vehicles from intruding, but also protect walls, equipment and green belts from vehicle collision damage, balancing practicality and safety. Strong scenario-based customization adaptability: the municipal version fits the municipal color matching standard and engraves exclusive logos to improve the urban appearance; the parking lot version optimizes height and spacing, adapting to parking space division and channel protection; the mall version adopts simple and beautiful surface technology, balancing protection and commercial image; the campus version adds buffer protection and warning signs to protect the travel safety of teachers and students; the factory version strengthens impact resistance and load-bearing, adapting to the protection around heavy vehicles and equipment, fully fitting the protection needs of various scenarios.

SPECIFICATIONS

Parameter Item Standard Protection Version Reinforced Anti-Collision Version Custom Exclusive Version
Column Diameter 76-114mm 140-168mm 60-219mm Optional
Column Height 500-600mm 750-900mm 400-1200mm Optional
Material & Wall Thickness Carbon Steel/Galvanized Steel, 2-3mm Carbon Steel/Stainless Steel, 5-6mm Carbon Steel/Stainless Steel/Galvanized Steel, 2-10mm
Impact Resistance 10-20 Tons 30-50 Tons 10-60 Tons Optional
Surface Technology Electrostatic Plastic Spraying/Baking Paint Galvanizing + Plastic Spraying Double Treatment Plastic Spraying/Baking Paint/Galvanizing/Wire Drawing Optional
Protection Grade IP65 IP65 IP65 (Upgradeable To IP67)
Operating Temperature -30℃ To +70℃ -40℃ To +75℃ -50℃ To +80℃ (Custom Temperature Resistance)
Custom Configuration Basic Color + Simple Logo Custom Color + Fine Logo Comprehensive Customization + Exclusive Protection Configuration

KEY FEATURES

◆ High-Quality Metal Base Material: Optional carbon steel, stainless steel, galvanized steel and other materials, firm and durable, not easy to deform and crack, and its protection performance far exceeds that of plastic and rubber bollards

◆ Thickened Anti-Collision Design: Column wall thickness adjustable from 2-10mm, built-in reinforcing ribs, strong impact resistance, effectively resist vehicle collision, and more reliable protection

◆ Multiple Anti-Rust Treatments: Surface galvanizing, electrostatic plastic spraying, baking paint process, rust-proof, corrosion-resistant, sun-proof and anti-aging, no rust and no paint peeling after long-term outdoor use

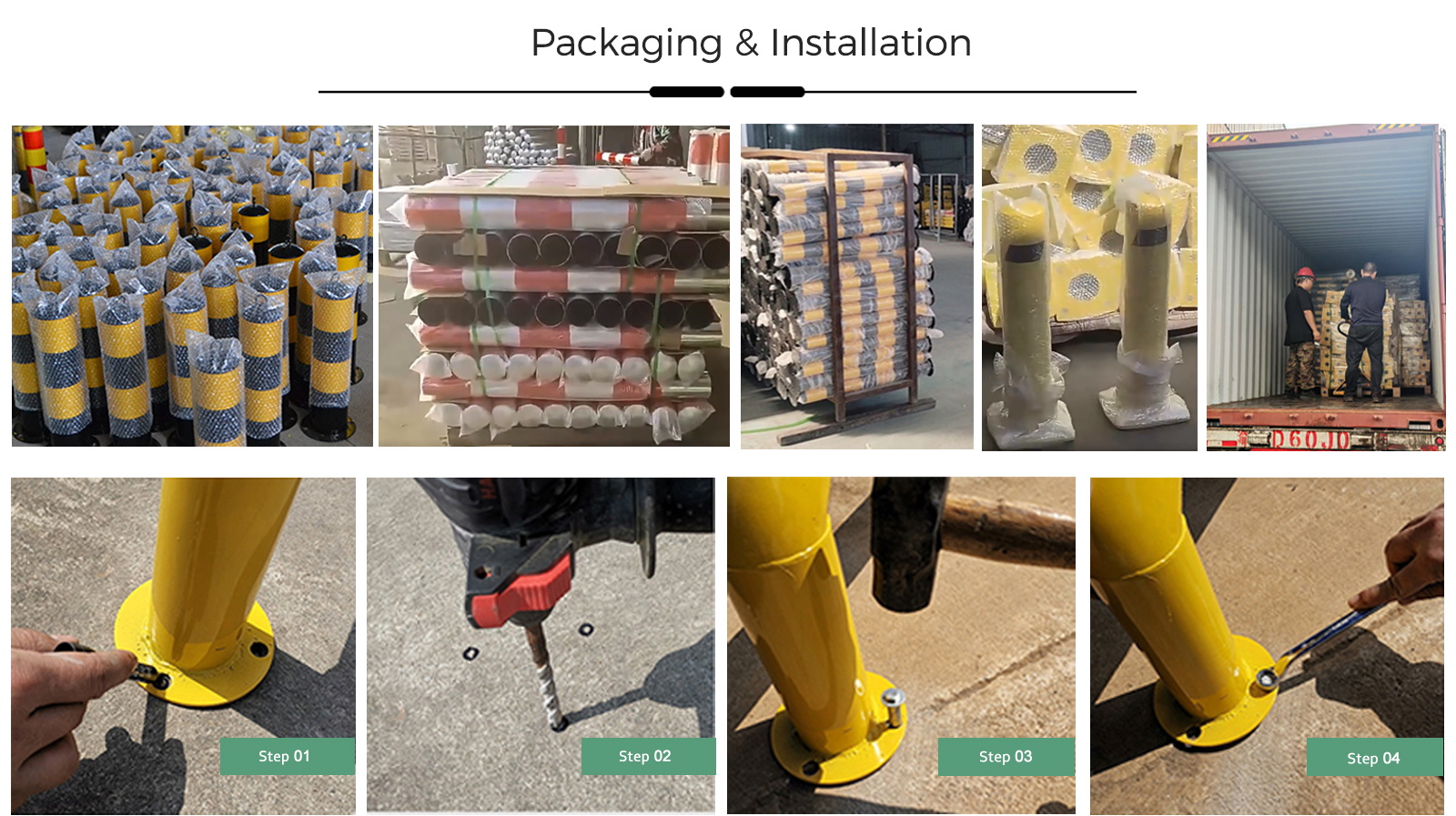

◆ Stable Installation Structure: Support flange fixing and embedded installation, fixed with expansion bolts, firmly installed, not easy to loosen, dump and shift

◆ High Weather Resistance Adaptability: IP65 protection grade, wide temperature operation from -40℃ to +75℃, fearless of rain, dust, high and low temperature, suitable for various outdoor environments

◆ Comprehensive Customization: Support customization of size, height, wall thickness, color, logo, warning sign and surface technology, fitting personalized needs

◆ Bulk Procurement Advantage: MOQ as low as 10 pieces, proofing fee waived for batches ≥50 pieces, stepped price discounts, suitable for large-scale engineering and commercial procurement

◆ Easy Maintenance & Long Life: Metal material has strong durability, no frequent maintenance required, service life up to 8-15 years, reducing later operation and maintenance costs

◆ Multi-Functional Protection: Can realize area division, vehicle isolation, anti-collision protection, safety warning, multi-purpose in one column, suitable for multi-scenario use

◆ Full Scene Universal: Suitable for municipal, commercial, campus, community, factory and other scenarios, customize exclusive protection configuration as needed

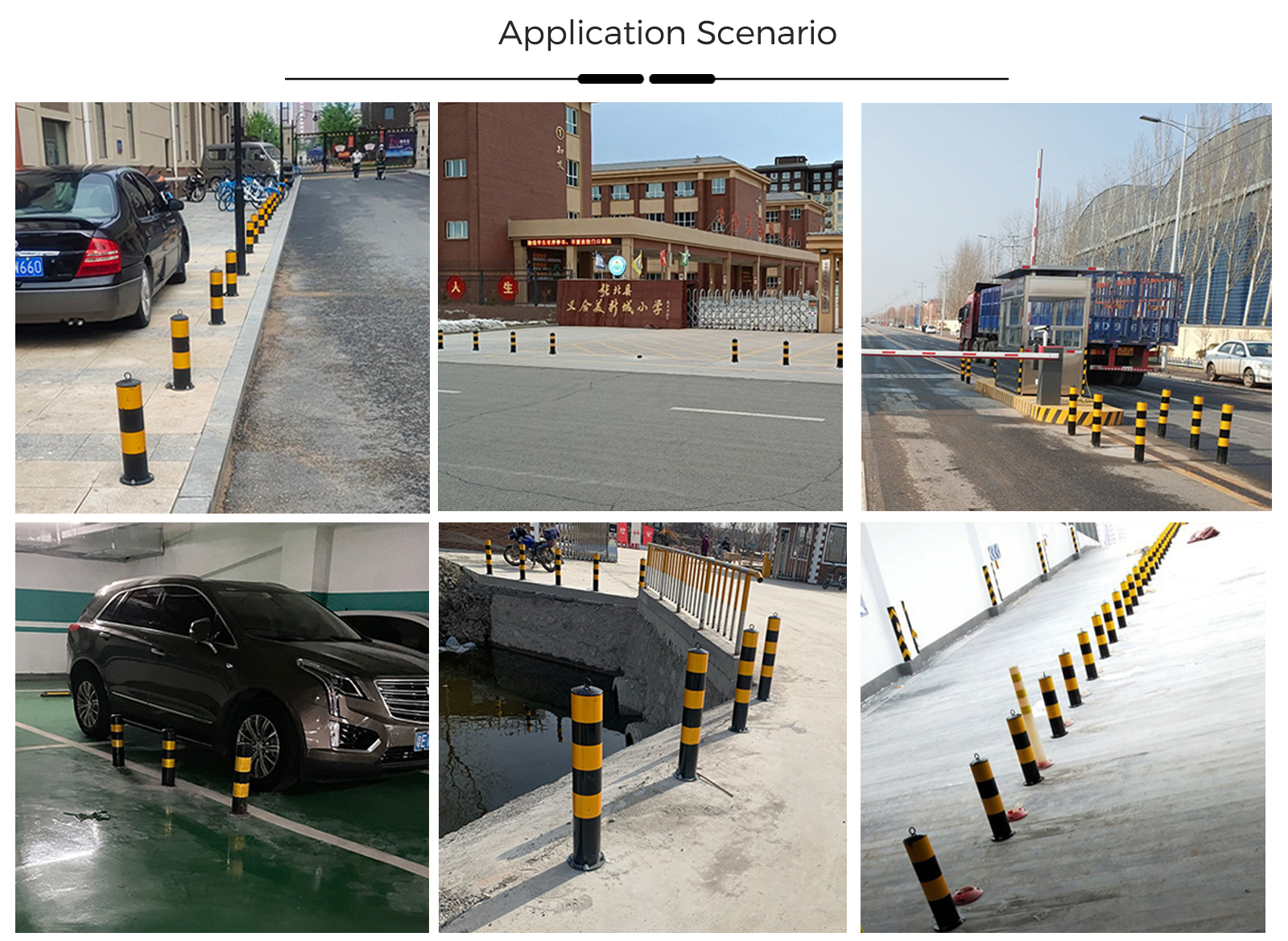

APPLICATION

1. Municipal Roads: Divide sidewalks and driveways, protect municipal facilities and road green plants, standardize traffic order, and improve urban road safety

2. Commercial Parking Lots: Divide parking spaces, isolate traffic lanes, block illegal parking and random vehicle traffic, and protect facilities around parking spaces

3. Shopping Malls & Supermarkets: Protect entrance glass doors, elevator entrances and valuable goods areas, avoid vehicle collisions, and balance commercial aesthetics and safety protection

4. Campus Parks: Isolate teaching areas and driveways, protect students' travel safety, divide campus activity areas, and create a safe campus environment

5. Residential Quarters: Isolate community passages, green belts and building entrances, prevent vehicles from intruding and hitting walls, and optimize community security

6. Factory Areas: Divide operation areas, isolate production equipment, block illegal passage of forklifts and trucks, and protect equipment and personnel safety

7. Scenic Parks: Isolate tourist trails and driveways, protect scenic facilities and green plants, and standardize the order of tourists and vehicles

8. Hospital Institutions: Isolate emergency passages and public areas of the hospital, ensure the smooth flow of emergency passages, and protect the travel safety of doctors and patients

9. Financial Outlets: Protect the area around bank entrances and ATMs, strengthen security, resist malicious collisions, and ensure the safety of funds and personnel

10. Logistics Parks: Divide loading and unloading areas, sorting channels, isolate trucks and operation areas, standardize vehicle traffic in the park, and improve operation safety

FAQ

Q1: What materials are available for this metal bollard, and what scenarios are different materials suitable for?

A1: Three main materials: carbon steel, stainless steel and galvanized steel; carbon steel version is cost-effective, suitable for conventional outdoor scenes; stainless steel version has excellent rust resistance, suitable for seaside and high-humidity environments; galvanized steel version is corrosion-resistant and durable, suitable for long-term open-air scenes such as municipal and factory, all in line with international quality certification standards.

Q2: What can be customized, and does it support complex logo and logo engraving?

A2: Support comprehensive customization, including size, height, wall thickness, color, surface technology, logo, warning text, anti-collision signs, etc. Complex logos and signs can be customized by laser engraving and screen printing, with clear and wear-resistant patterns, not easy to fall off, fitting brand and scene needs.

Q3: What is the production cycle and transportation method of customized products?

A3: Conventional customized versions are shipped within 5-10 days, and deep customized versions (special specifications, complex processes) are delivered within 10-15 days; support sea, air and land transportation, provide standardized waterproof and anti-collision packaging, with fumigation certificate and customs declaration data, and can assist in connecting overseas logistics channels.

Q4: What is included in the product warranty and after-sales support?

A4: 3-5 years warranty for main metal materials, 1-2 years warranty for surface coating, lifelong technical guidance and accessory support; 24-hour global after-sales response, remote installation guidance can be provided, and overseas customers can be assisted in connecting local construction teams.

Q5: Is small batch customization supported, and what discounts are available for large batch procurement?

A5: Support small batch trial orders, MOQ as low as 10 pieces; proofing fee is waived for batches ≥50 pieces, the larger the batch, the greater the discount. Long-term cooperative customers can lock in preferential prices, priority orders, and provide exclusive customized quotation plans.

Q6: Is the product installation complicated, and are professional construction personnel required?

A6: Easy to install, with detailed installation drawings and video tutorials. Flange type can be directly fixed by drilling holes on the ground, and embedded type only needs foundation pouring, which can be operated by ordinary workers. Remote construction guidance can be provided for complex projects.

Q7: Can material testing and impact resistance testing reports be provided?

A7: Can provide material testing, impact resistance and rust resistance testing reports issued by third-party authoritative institutions such as SGS and CTI, and support handling overseas compliance certifications such as CE and ISO as needed to meet customs clearance and acceptance requirements.

Q8: Is special customization required for use in harsh environments such as seaside and saline-alkali land?

A8: Customized thickened stainless steel version, double-layer galvanized + plastic sprayed double anti-corrosion version can be customized to strengthen salt spray and corrosion resistance, ensuring no rust and damage in harsh environments for a long time, and stably playing a protective role.

Customized Services

Focusing on the core needs of fixed protection and isolation in various scenarios, this product takes "firm anti-collision, durable rust-proof and comprehensive customization" as its core advantages, providing exclusive customized services to accurately match the use needs of different scenarios, budgets and protection levels:

1. Specification & Size Customization: Column diameter, height and wall thickness can be flexibly customized according to needs, adapting to different protection strength, site space and area division needs, and all sizes can be accurately made.

2. Material & Technology Customization: Support multiple materials such as carbon steel, stainless steel and galvanized steel, surface technology can be customized with plastic spraying, baking paint, galvanizing, wire drawing, etc., strengthening rust-proof, anti-collision and aesthetic performance, adapting to different use environments.

3. Appearance & Logo Customization: Support full RAL color system customization, laser engraving, screen printing brand logo, warning text, scene exclusive logo, balancing protection practicality and brand display effect.

4. Scenario Adaptation Customization: Customize exclusive protection configurations according to different scenarios such as municipal administration, parking lots, campuses, factories, such as campus buffer version, factory heavy-duty version, seaside anti-corrosion version, fitting the actual use of the scene.

5. Batch Exclusive Customization: Support small batch trial orders and large batch engineering procurement, batch customization enjoys free proofing fee and stepped discounts, unified specifications, colors and logos can be made to create a standardized protection system.

6. Foreign Trade Compliance Customization: Comply with international quality standards, handle overseas certifications such as CE and ISO as needed, customize multilingual warning signs, optimize sea transportation packaging, provide complete customs declaration data, and adapt to global market customs clearance and use.
