Many project contractors, property managers, and municipal engineering clients often ask: Can automatic rising bollards be fully customized to fit unique site conditions and security standards? The answer is absolutely yes. Standard bollards cannot meet all road access, anti-collision, environmental adaptation and intelligent management demands. To solve diversified on-site application pain points, we provide one-stop full-range customization services for automatic rising bollards, covering size, material, anti-collision grade, lighting warning, power system, intelligent control, accessories and special non-standard functions, supporting personalized solutions for commercial, residential, municipal, industrial and explosion-proof scenarios.
1. Custom Appearance & Dimension Parameters (Most Popular)
Different road widths, buried environments and scene aesthetics require tailored bollard dimensions. Our automatic bollards support flexible size customization to adapt to various installation conditions.
Bollard Diameter: Standard sizes include 168mm, 219mm and 273mm. Non-standard diameters such as 114mm, 140mm, 325mm and 377mm are available for special channel layout needs.
Lifting Height: The standard lifting height is 600mm. Optional heights cover 300mm, 400mm, 500mm, 700mm, 800mm and 1000mm. For high-level anti-collision security scenarios, the maximum height can reach 1200mm.
Wall Thickness: Conventional 6mm for daily traffic separation; 8mm/10mm/12mm/14mm for heavy anti-collision demands; thickened 16mm wall thickness for explosion-proof and heavy-duty security projects to enhance impact resistance.
Buried Depth & Spacing: We adjust buried depth according to lifting height and drainage requirements, supporting shallow-buried and standard deep-buried styles. The spacing of multiple bollards can be customized based on channel width, with complete layout design solutions provided.
2. Custom Material & Anti-Collision Security Grade
Security level and service life depend on materials and structural design. We match the most suitable configuration according to client’s anti-impact standards and regional environments.
Material Selection: 201 stainless steel for general scenarios; 304 stainless steel as the preferred outdoor material with excellent weather resistance; 316 stainless steel for coastal salt-fog corrosion prevention; carbon steel powder coating for cost-effective factory interior use.
Anti-Collision Grade Customization: Light-duty for residential and park pedestrian-vehicle separation; medium-duty for shopping malls and schools to prevent accidental collision; heavy-duty anti-terror models including K4, K8 and K12 grades, which pass professional vehicle impact tests for government, border and high-security sites.
Surface Finishing: Stainless steel wire drawing, mirror polishing, black/grey/yellow electrostatic powder coating, reflective baking finish and antique coating, balancing durability and overall scene aesthetics.
3. Custom Warning & Lighting Systems
To improve night traffic safety and warning visibility, our automatic bollards support diversified lighting and reflective identification customization.

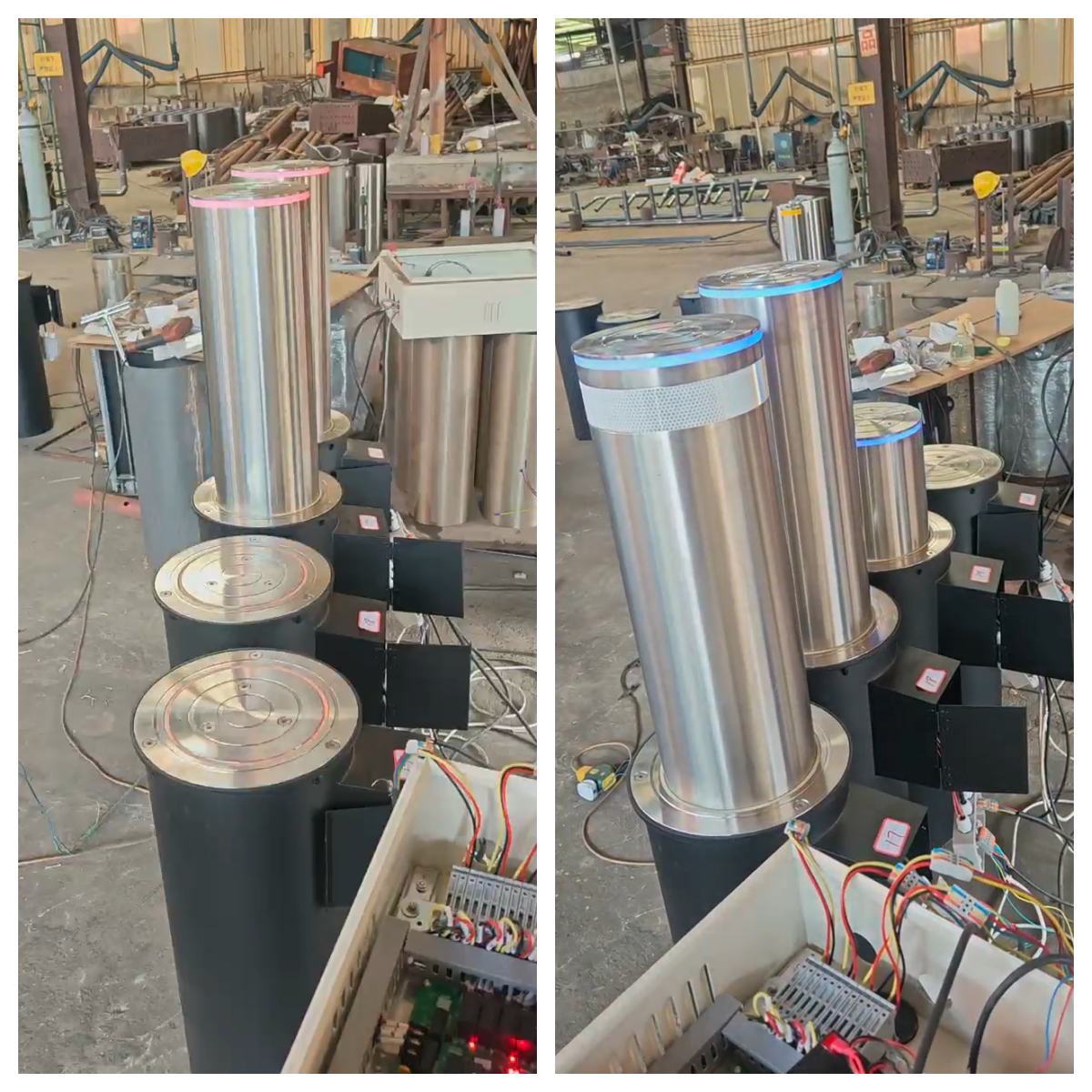

Multiple reflective marks are optional, including ordinary yellow reflective film, high-brightness 3M reflective tape, full-column surrounding reflective strips and custom LOGO reflective stickers. For LED warning lights, we offer steady-on, flashing and gradient RGB color changing modes, with top single lights, surrounding light strips and upper and lower layered lighting designs. Red, yellow, blue, white single color or full-color gradient effects are available, which can be synchronously linked with barrier gate signal lights. Wear-resistant thickened rubber and silicone night reflective rings are also optional for enhanced durability.
4. Custom Drive & Power System
Aiming at different temperature environments, usage frequency and site conditions, we customize professional power and drive solutions for automatic bollards.

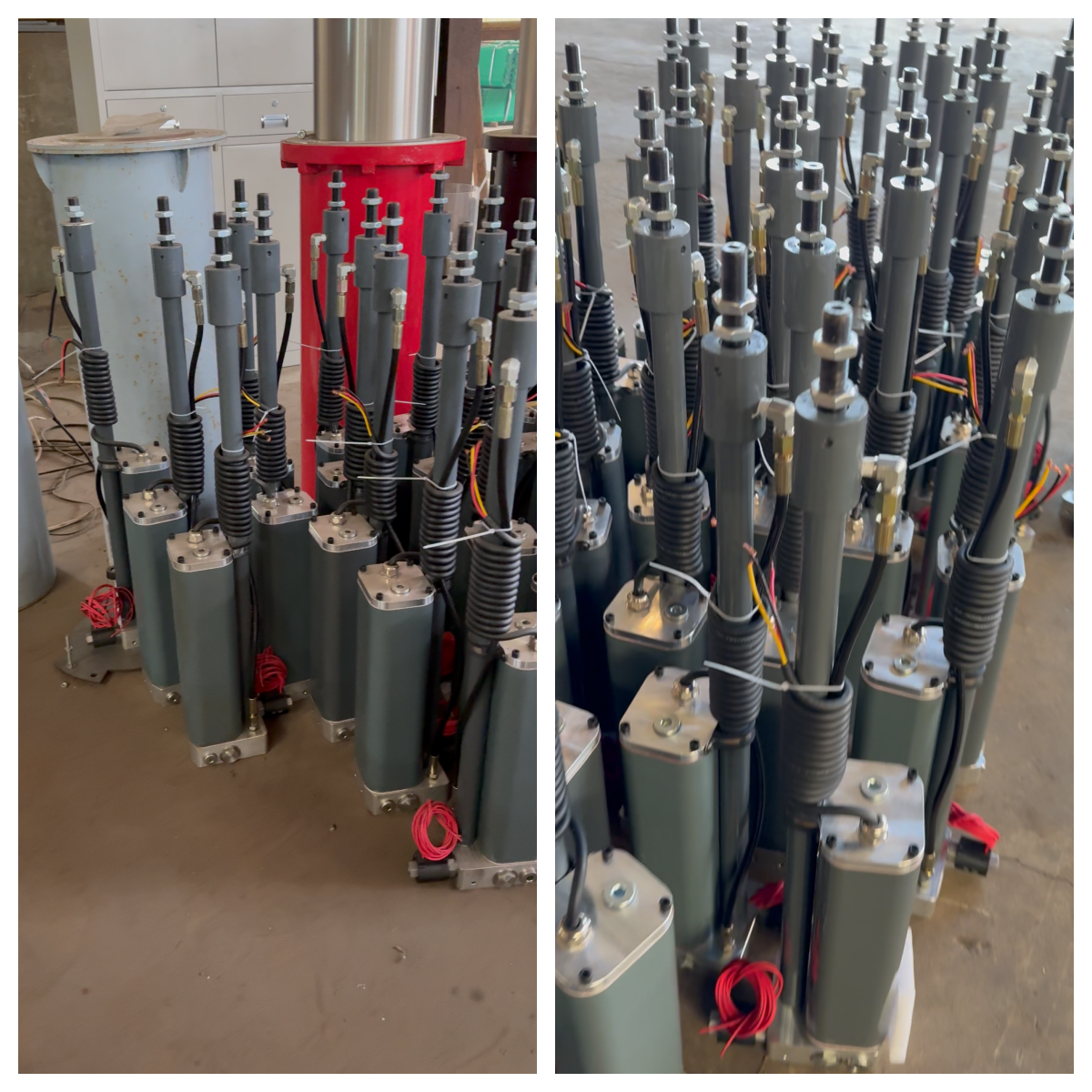

Drive Type: Integrated or split hydraulic lifting systems for stable heavy-load operation; electric motor-driven bollards without hydraulic oil, ideal for low-temperature and indoor environments.
Voltage & Speed: 220V civil voltage, 380V industrial high-power voltage and 24V DC safe low voltage are optional. Conventional lifting speed is 3-6 seconds, with customized 1-2 second fast lifting and low-noise slow lifting models available.
Protection & Anti-Freezing Configuration: Standard IP67 waterproof grade, upgradeable to IP68 full waterproof with drainage pumps and water accumulation alarms for waterlogged areas. Electric heating anti-freezing devices can be equipped for northern low-temperature regions to prevent hydraulic oil solidification.
5. Custom Intelligent Control & Linkage System
To realize intelligent access management, our automatic lifting bollards support multi-mode control and multi-device linkage customization, meeting modern smart security management needs.
Available control methods include remote control, ground induction coil, license plate recognition linkage, face recognition, card swiping, Bluetooth, mobile mini-program, cloud platform remote control and sentry box console. The bollards can be linked with barrier gates, access control, floor locks, monitoring, traffic lights, road blockers and fire protection systems, realizing automatic drop and release when fire signals are triggered.
Customizable alarm functions include obstacle rebound, overload protection, illegal impact alarm, water accumulation alarm, fault code upload and acousto-optic alarm. For power failure emergencies, we provide manual pressure relief descent, battery backup power and manual mechanical lifting solutions. Zonal independent control is also supported for partitioned lifting management.
6. Custom Top Structure & Supporting Accessories
We provide full accessory customization to optimize installation stability and product durability. Multiple top styles are optional: flat top, arc top, pointed top, thickened anti-collision top cover and rubber buffer top to prevent vehicle collision damage. Bottom polyurethane buffer blocks and hydraulic shock absorption structures reduce lifting noise and vibration.
Supporting accessories include thickened buried barrels, double-layer waterproof buried barrels, integrated drainage buried kits and stainless steel maintenance covers. Detachable column anti-collision rubber rings and wear-resistant protective sleeves can be equipped to reduce scratch damage.
7. Special Non-Standard Function Customization
For special industry and extreme environment scenarios, we support exclusive non-standard customization of automatic bollards:
Explosion-proof configuration with explosion-proof motors and control boxes for gas stations and chemical plants; enhanced waterproof and anti-corrosion treatment with 316 stainless steel and anti-salt spray coating for coastal areas; low-noise models with silent hydraulic pumps and shock-absorbing bases for hospitals and residential areas; shallow-buried bollards for shallow soil layers and split external pump stations for narrow spaces.
We also support laser engraving of enterprise names, community names and warning slogans, customized stainless steel drainage tanks and integrated maintenance wells, as well as movable non-buried automatic bollards for temporary traffic control and event site management.
8. Complete Set of Integrated Custom Solutions
We do not only provide single product customization, but also support one-stop complete solution customization for automatic rising bollard systems. According to customer’s channel width, traffic flow and security level requirements, we can flexibly match supporting equipment including control boxes, remote controllers, ground sensors, license plate recognition systems, buried barrels and drainage systems, providing integrated design from scheme planning, production and manufacturing to installation guidance.
Final Words
Every project has unique site conditions and security demands. Our custom automatic rising bollard service breaks the limitations of standard products, realizing full-dimensional personalized customization from appearance, performance, functions to intelligent systems. Whether it is conventional municipal traffic separation or high-standard anti-terror explosion-proof, special environmental anti-corrosion and intelligent scene matching, we can provide targeted professional solutions for global clients.
